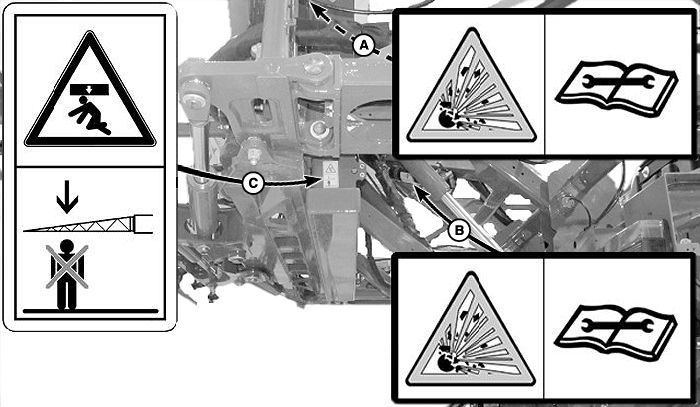

Boom Movement and Accumulator Decals

N103869-UN-30MAY13

Decal A

CAUTION: To prevent the risk of injury, as well as possible damage to the accumulator or hydraulic system, maintain recommended nitrogen gas pressure. See your John Deere Dealer for service. Charge only with dry nitrogen. Factory precharge pressure is 1800 psi.

Decal B

CAUTION: To prevent the risk of injury, as well as possible damage to the accumulator or hydraulic system, maintain recommended nitrogen gas pressure. See your John Deere Dealer for service. Charge only with dry nitrogen. Factory precharge pressure is 785 psi.

Decal C

CAUTION: Avoid crushing injury. Booms move quickly. Stay clear of booms while engine is running.
