Adjust Outer Boom Section Stop Bolt

1.

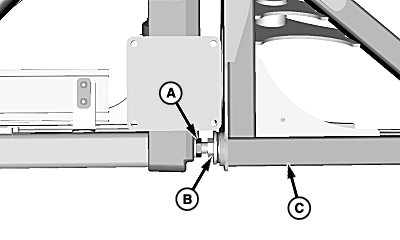

   N106867-UN-25SEP13

   A - Jam Nut

   B - Stop Bolt

   C - Outer Section

   Loosen jam nut (A).

---




2. Adjust outer boom section stop bolt (B) in or out so that outer section (C) is in line with the rest of boom.

3. Tighten jam nut.
