Adjust Breakaway Stop

IMPORTANT:

N102002
N102002-UN-30JAN13

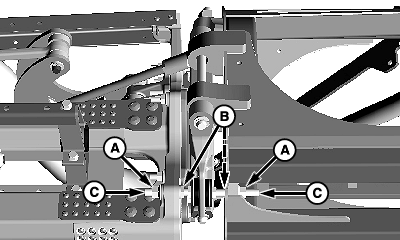

A - Nuts

B - Nuts

C - Stops

Verify breakaway spring setting after adjusting breakaway stop.

Use nuts (A) and (B) to adjust stops (C) so that breakaway section is in line with outer boom section.

CS12167,0000466-19-20130925
