Front Console

N108293-UN-05NOV13

N108294-UN-05NOV13

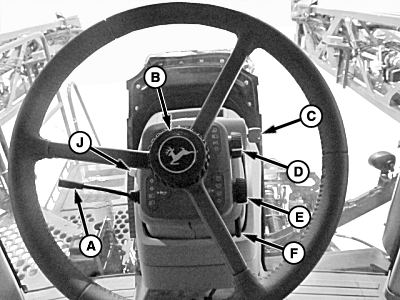

A - Turn Signal Lever, Dimmer Switch, Horn, Flash-To-Pass

B - Steering Wheel Telescope Release

C - Key Switch

D - Light Switch

E - Wiper Adjust Switch

F - Steering Wheel Tilt Adjust

G - Boom Fold Mode Switch

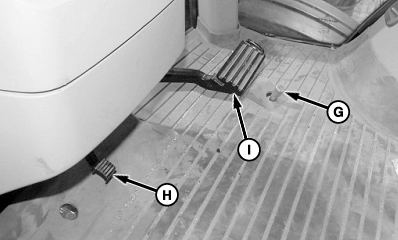

H - Steering Column Foot Release

I - Brake Pedal

J - Ether Injection Button—If Equipped
