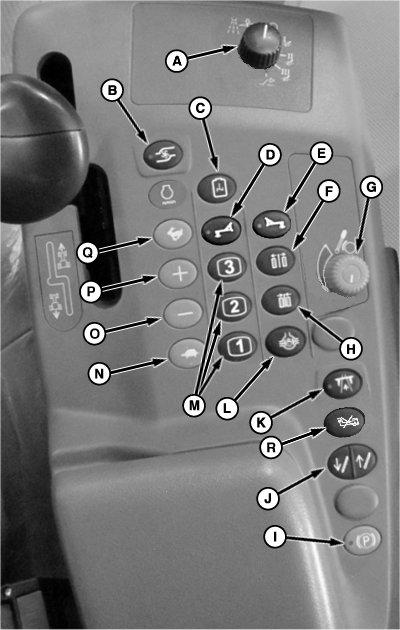

CommandARM™ Armrest Controls

N108305-UN-05NOV13

A - Rate Selection Switch

B - Solution Pump Switch ON/OFF

C - Agitation Switch ON/OFF

D - Left-Hand Fence Row Nozzle

E - Right-Hand Fence Row Nozzle

F - Tread Out

G - Modulated Secondary Brake

H - Tread In

I - Park Brake

J - Ladder Down/Up

K - Transport Lock

L - Wheel Slip Control (If Equipped)

M - Programmable Hot Keys For Display Page

N - Low Idle

O - Engine Speed Decrease

P - Engine Speed Increase

Q - High Idle

R - Load Command (If Equipped)
