Operate Lights

N108559-UN-05NOV13

N94071-UN-17SEP12

A - Light Switch

B - Off Position

C - Park Light Position

D - Road Light Position

E - Field Lights Position

F - Field Position 1

G - Field Position 2

H - Boom Lights

CAUTION: Accidental collision with another vehicle can cause serious injury or death to you or others. Always comply with traffic regulations when driving machine on a road. Dim headlights to low-beam for oncoming vehicles.

To avoid motorist confusion, do not operate work lights when transporting on public roadways.

Light switch (A) has four positions—OFF (B), Park lights (C), Road light (D), and Field lights (E).

IMPORTANT: Light switch (A) has to be in field light position (E) for field lights (F, G, and H) to work

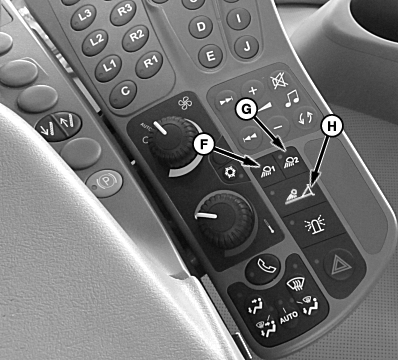

Field Light switches—Field position 1 (F), Field position 2 (G), and Boom lights (H).

OFF POSITION

Turns off all exterior lighting with exception of warning lights when hazard light switch is in on position.

NOTE: (See Light Operation Table in this section.)
