Fill Fuel Tank

1. CAUTION:

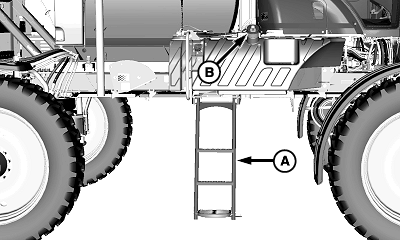

   N102413-UN-11APR13

   A - Fuel Fill Ladder

   B - Fuel Tank Fill Cap

   Shut off engine before filling fuel tank.

   Avoid serious injury from falling. Do not stand on fuel tank.

   NOTE: R4038 and R4045 fuel tank capacity is 586L (155 gal.).

   R4030 fuel tank capacity is 515 L (136 gal.).

   Lower fuel fill ladder (A).

---




2. Remove fuel tank cap (B). Fill tank with proper grade of diesel fuel. (See Lubrication And Maintenance section for diesel fuel specifications.)
