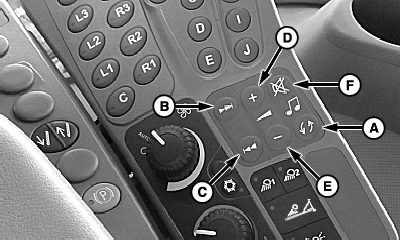

Radio Function Switches—If Equipped

NOTE:

N102012-UN-11FEB13

Mode Selection Switch (A):

Press button to toggle between:

• FM1/FM2/AM/WX
• XM1/AM2/XM3
• CD/AUX (Auxiliary)

Seek Forward Switch (B):

• Radio/XM: Press button to advance to next available higher frequency.
• CD/MP3: Press button to advance to next available track.

Seek Reverse Switch (C):

• Radio/XM: Press button to decrease to next available lower frequency.
• CD/MP3: Press button to go to beginning of current track or to previous track.

Volume Increase Switch (D):

Press switch to increase audio volume.

Volume Decrease Switch (E):

Press switch to decrease audio volume.

Mute Switch (F):

Press button to mute audio. Press button to resume play of audio music.
