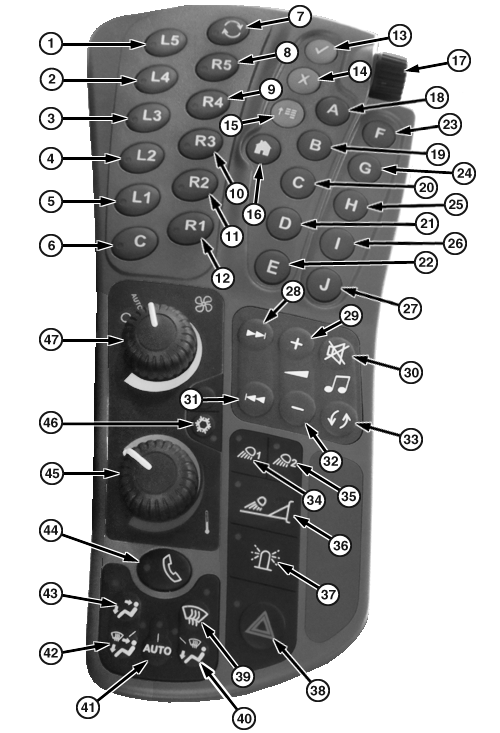

CommandARM Side Console Controls

N93788-UN-17SEP12

1 - L5 Boom Section Switch

2 - L4 Boom Section Switch

3 - L3 Boom Section Switch

4 - L2 Boom Section Switch

5 - L1 Boom Section Switch

6 - Center Boom Section Switch

7 - All Boom Sections ON Switch

8 - R5 Boom Section Switch

9 - R4 Boom Section Switch

10 - R3 Boom Section Switch

11 - R2 Boom Section Switch

12 - R1 Boom Section Switch

13 - Confirm Switch

14 - Cancel Switch

15 - Main Menu Switch

16 - Home Switch

17 - Selection Dial

18-27 - A—J Shortcut Switches

28 - Seek Forward Switch

29 - Volume Increase Switch

30 - Mute Switch

31 - Seek Reverse Switch

32 - Volume Decrease Switch

33 - Pre-Set Channel Select Switch

34 - Work Lights 1 Switch

35 - Work Lights 2 Switch

36 - Boom Lights Switch

37 - Beacon Light Switch

38 - Hazard Light Switch

39 - Defrost Switch

40 - Defrost and Floor Switch

41 - Auto HVAC Switch

42 - Defrost, Floor, and Cab Switch

43 - Cab and Floor Switch

44 - Phone Switch

45 - Temperature Control Dial

46 - Air Conditioning Switch

47 - Fan Speed Control Dial
