Control Air Flow

1.
   N93785-UN-17SEP12


   N108306-UN-20FEB14


   N110146-UN-20FEB14

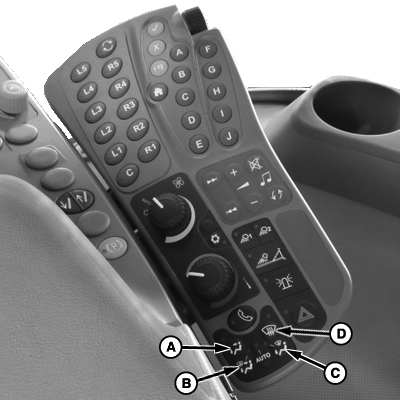

   A - Cab and Floor Switch

   B - Defrost, Floor, and Cab Switch

   C - Defrost and Floor Switch

   D - Defrost Switch

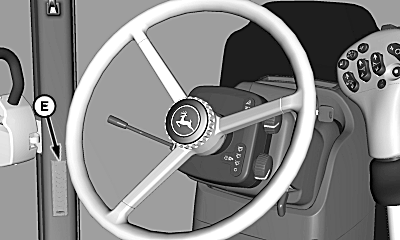

   E - Floor Vents

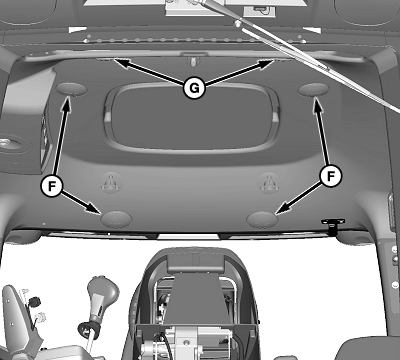

   F - Defrost Vents

   G - Cab Vents

   Use cab and floor switch (A), defrost, floor and cab switch (B), defrost and floor switch (C) and defrost switch (D) to select the desired air flow position.

---




2. Direct floor vent (E), defrost vents (F) and cab vents (G) as needed.
