Control Temperature (Machines without ClimaTrak System)

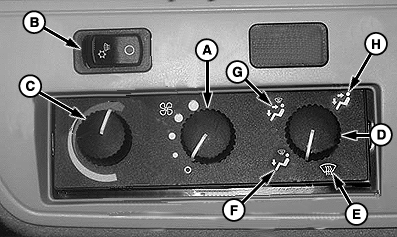

N102398-UN-12FEB13

A - Fan Speed Control Dial

B - Defrost/AC Switch

C - Temperature Dial

D - Air Flow Dial

E - Defrost Position

F - Defrost and Floor Position

G - Defrost, Floor and Cab Position

H - Cab and Floor Position

Fan speed control dial (A) and defrost/air conditioning switch (B) must be in an ON position before the defroster/air conditioning system will operate.

Temperature dial (C) controls the heater and defrost/air conditioner temperature.

Use air flow dial (D) to select between defrost (E), defrost and floor (F), defrost, floor and cab (G) or cab and floor (H) positions .
