Disconnect Load Command—If Equipped

1. NOTE: Install caps or plugs at all connections to prevent contamination.

   Catch any remaining solution in suitable container.

   Retain all hoses in locations so they are not damaged while solution system is not in use.

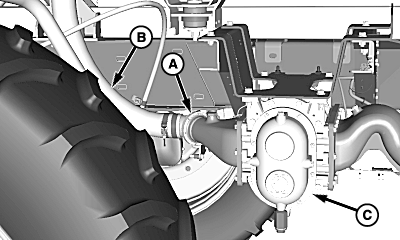

   N109338-UN-20JAN14

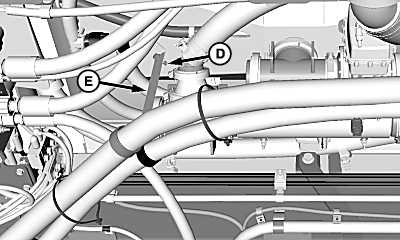

   N109339-UN-20JAN14

   A - Clamp

   B - Tank Fill Hose

   C - Load Command Pump

   D - Cap Screw

   E - Bracket

   Remove clamp (A) and disconnect tank fill hose (B) from Load Command pump (C).

---




2. Remove and retain cap screw (D).

3. Position bracket (E) so it will not interfere during removal.

4.

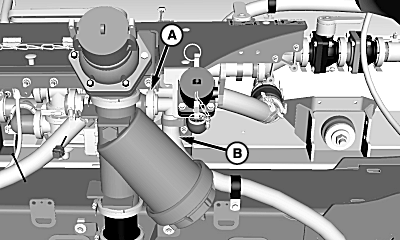

   N109340-UN-20JAN14

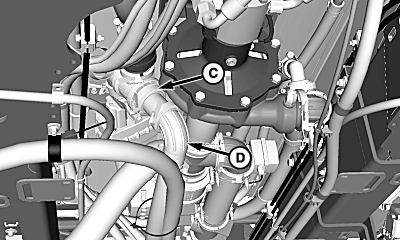

   N109493-UN-20JAN14

   A - Clamp

   B - Evacuation Hose

   C - Clamp

   D - Rinse Hose

   Remove clamp (A) and disconnect evacuation hose (B).

---




5. Remove clamp (C) and disconnect rinse hose (D).

6.

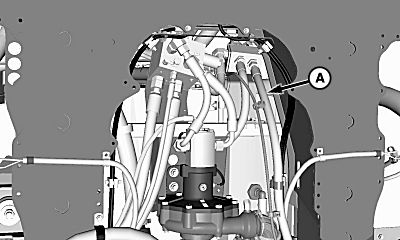

   N109495-UN-20JAN14

   A - Hydraulic Hose

   Disconnect hydraulic hose (A).

---
