Check Torque on Fixed Tread Adjust Hardware—250 Hours

1.
   N100105-UN-17SEP12

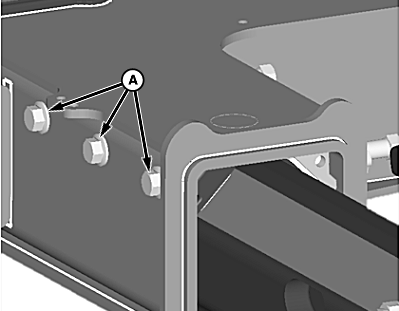

   A - Cap Screw

   Check torque on cap screws (A).

   Item	Measurement	Specification
   Tread Adjust Fixed Hardware	Torque (lubricated)	250 N·m 184 ft.-lb.

---




2. If torque was not maintained cap screws must be replaced using the following procedure:

   1. Remove and discard cap screws.

   2. Coat new cap screws with anti-seize compound.

   3. Install cap screws and tighten to specification.

   4. Repeat tightening until torque is maintained.
