Park Brake Switch

IMPORTANT:

N102008
N102008-UN-11FEB13

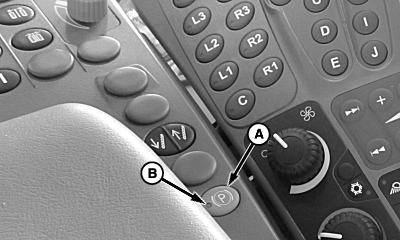

A - Park Brake Switch

B - Indicator Light

Pressing the park brake switch will fully apply park brake at any vehicle speed. This may damage internal brake components.

If park brake switch is engaged it must be manually disengaged before moving machine. Park brakes will not automatically release when park brake switch has been engaged.

NOTE: Park brake switch does not need to be engaged when parking machine. Park brakes are automatically applied when multifunction control handle is in park position.

Park brake will automatically be disengaged when multifunction control handle is moved from the park position if the park brake switch has not been engaged.

Press park brake switch (A) to engage park brake. Press switch again to disengage park brake. Indicator light (B) will light when park brake is engaged.
