Tow The Sprayer

If the sprayer becomes disabled and unable to move, it may be towed using the following emergency tow procedure. Be certain to read and follow all ”CAUTION” and “IMPORTANT” statements and procedural steps to avoid injury to you or others, and possible machine damage.

CAUTION:

TS258
TS258-UN-23AUG88

Avoid serious injury or death to you and others. Block all wheels, prior to removing and installing planetary hub primary sun gears. Removing all planetary hub primary sun gears will allow machine to freewheel.

IMPORTANT: The machine should only be towed for a short distance of 0.5 km (1640 ft.) and at very slow speeds of 0—2 km/h (0—1 mph).

IMPORTANT: The machine will need to be steered from the cab when being towed. When the engine is off, steering will require more effort and more rotations of the steering wheel than normal. The service brakes will not function unless auxiliary pump is operating or secondary steering pump is operating. So it is preferable to have the engine running when being towed. If the engine is inoperable, towing is limited to 15.2 m (50 ft.).


With Engine Running

  1. Block wheels to prevent unexpected machine movement.

  2. Disconnect electrical connectors at all four hydrostatic drive motors.

  3. Start engine.

  4. IMPORTANT: Multifunction control handle must be held out of park position. If multifunction control handle is returned to park position, parking brakes will automatically engage.

    Move multifunction control handle out of park position. Machine may now be towed.


With Engine Not Running

  1. Block wheels to prevent unexpected machine movement.

  2. NOTE: Approximate capacities of planetary hubs are:

    • R4030—1.2 L (1.3 qt.)
    • R4038—1.7 L (1.8 qt.)
    • R4045—2.5 L (2.6 qt.)

    Drain oil from planetary hub into a suitable container. (See Change Planetary Hub Oil—500 Hours in Lubrication and Maintenance section of this manual.)

  3. N110147
    N110147-UN-24FEB14

    R4030 Planetary Hub

    N110148
    N110148-UN-24FEB14

    R4045 Planetary Hub

    N110149
    N110149-UN-24FEB14

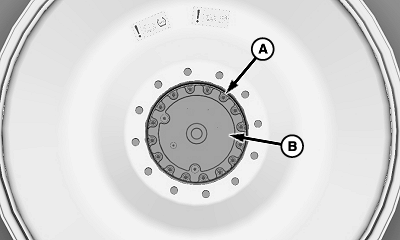

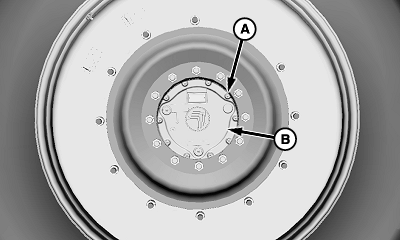

    A - Socket Head Cap Screws

    B - Front Cover

    C - Sun Gear

    Remove sun gears—R4030 and R4045:

    1. Remove socket head cap screws (A) and front cover (B).

    2. Remove sun gear (C) from planetary hub.

    3. Install previously removed front cover.


  4. N110634
    N110634-UN-25FEB14

    R4038 Planetary Hub

    N110635
    N110635-UN-25FEB14

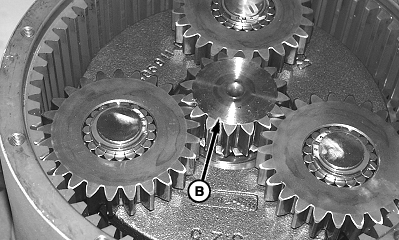

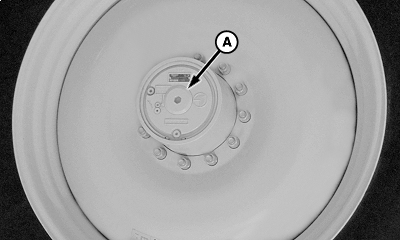

    A - Plug

    B - Sun Gear

    Remove sun gears—R4038:

    1. Remove plug (A) from front cover.

    2. Remove sun gear (B) from planetary hub.

    3. Install previously removed plug.


  5. Fill planetary hubs with oil. (See Change Planetary Hub Oil—500 Hours in Lubrication and Maintenance section of this manual.)

  6. Repeat procedure on remaining planetary hubs.

  7. N110640
    N110640-UN-26FEB14

    N110643
    N110643-UN-03MAR14

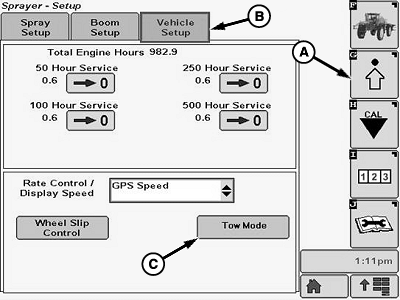

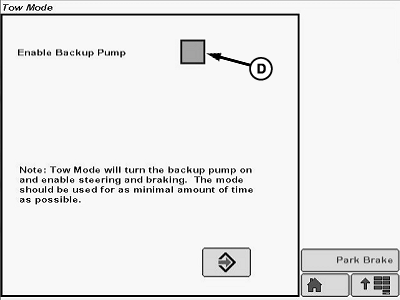

    A - Setup Softkey

    B - Vehicle Setup Tab

    C - Tow Mode Button

    D - Check Box

    Enable secondary steering pump—if equipped.

    1. Press setup softkey (A).

    2. Select vehicle setup tab (B).

    3. Press tow mode button (C).

    4. Select check box (D) to enable secondary steering pump.

      NOTE: Secondary steering pump will activate when check box is selected and will run continuously until disabled or battery power is lost. The steering pump will provide steering and service braking power when active.


  8. Tow machine as necessary.

  9. After towing, install all four sun gears and refill planetary hubs with oil.
