Secondary Steering Pump—If Equipped

N106663
N106663-UN-19SEP13

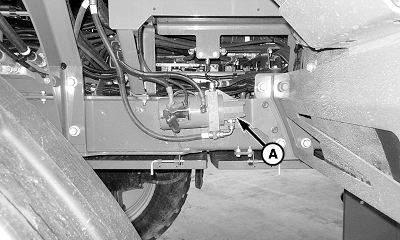

A - Secondary Steering Pump

To meet regulatory requirements, certain machines will be equipped with a secondary steering pump (A) that will be activated to provide temporary operation of steering functions when hydraulic pressure sensors detect a drop in hydraulic pressure.

Service vehicle immediately once fault occurs, see your John Deere dealer.

NOTE: Manual backup steering is provided by the standard dual gerotor style steering valve.

CS12167,0000549-19-20140203
