Install Pressure Port Adaptor

1.

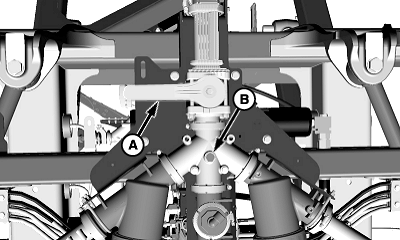

   N101393-UN-14JAN13

   A - Boom Isolation Valve Handle

   B - Plug

   Rinse boom. See Operate Rinse System (Rinse Solution Pump, Boom, and Flowmeter Only) in Wet System Operation sections of operators manual.

---




2. CAUTION: Do not close the boom isolation valve with the solution pump running. This can trap pressure in the boom that can be hazardous when removing strainers for cleaning.

   Shut off solution pump.

3. Relieve boom pressure. See Relieve Boom Pressure in Wet System section of operators manual.

4. Rotate isolation valve handle to off position.

5. CAUTION: Do not drain solution onto the ground. Drain into a container. Drain solution in an area where people, animals, vegetation and water supply, etc., cannot be contaminated.

   Remove and retain plug (A).

6. NOTE: Apply PM37463 RTV Clear Silicone to threads of all fittings.

   Install pressure port adaptor.

7. Remove pressure port adaptor and install previously removed plug when testing is complete.
