Drain Solution Tank—Non EU Machines

N98792-UN-12JUL13

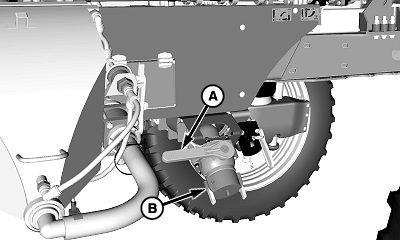

Side Quik-Fill

N102217-UN-16MAY13

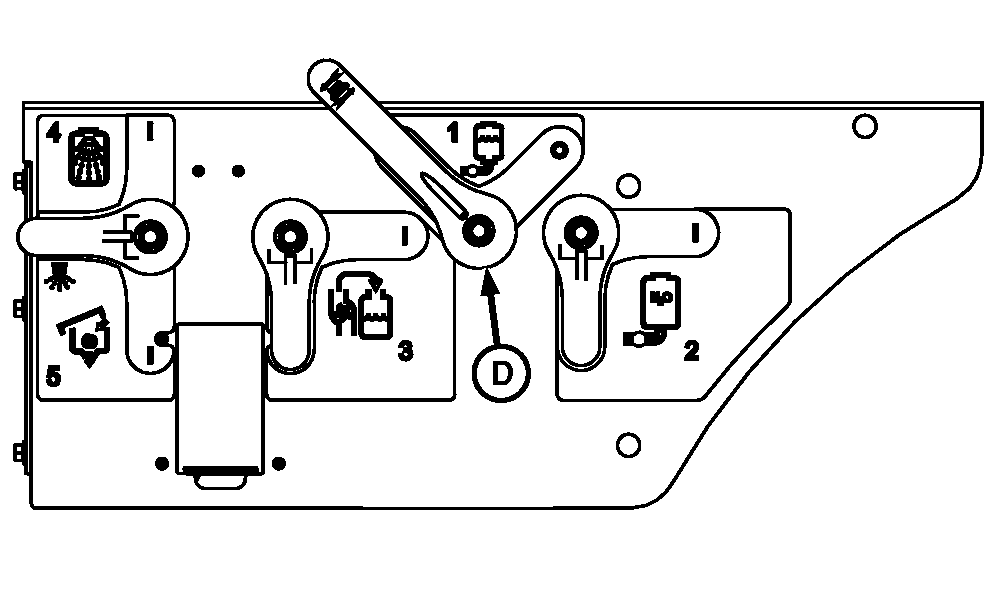

Front Quik-Fill

N106860-UN-24SEP13

A - Quik-Fill Valve

B - Cap

C - Switch

D - Solution Tank Sump Valve

CAUTION: Spray system can contain hazardous material which can cause serious injury or death to you or others. Wear protective clothing, eyewear, and gloves. Drain solution tank in an area where people, animals, vegetation and water supply etc., cannot be contaminated.

1. CAUTION: Quik-Fill valve can contain hazardous materials which can poison causing serious injury or death to you or others. Before removing Quik-Fill cap (B), make sure Quik-Fill valve is turned off.

   Do not drain solution onto the ground. Drain into a suitable container.

   Verify Quik-Fill valve (A) is closed.

2. Open lock levers and remove cap (B).

3. Open solution tank sump valve (D).

4. Connect nurse tank hose to Quik-Fill or place suitable container under Quik-Fill to catch solution.

5. Open Quik-Fill valve.

   NOTE: For front Quik-Fill, move switch (C) to ON position.

6. After solution has drained close Quik-Fill valve and solution tank sump valve.

   NOTE: For front Quik-Fill, move switch to OFF position.
