Drain Solution Tank—EU Machines Only

CAUTION:

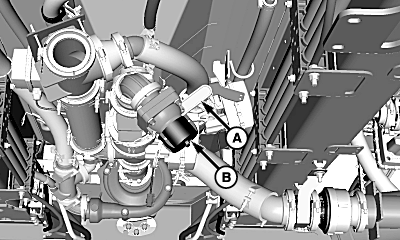

N105941-UN-16SEP13

A - Drain Valve

B - Cap

1. CAUTION: Drain valve can contain hazardous materials which can poison causing serious injury or death to you or others. Before removing cap (B), make sure drain valve is turned off.

   Do not drain solution onto the ground. Drain into a suitable container.

   Verify drain valve (A) is closed.

2. Open lock levers and remove cap (B).

3. Connect nurse tank hose to drain valve or place suitable container under drain valve to catch solution.

4. Open drain valve.

5. After solution has drained close drain valve and remove nurse tank hose (if used).

6. Install drain valve cap.
