Disconnect Front Fill — If Equipped

1. NOTE:

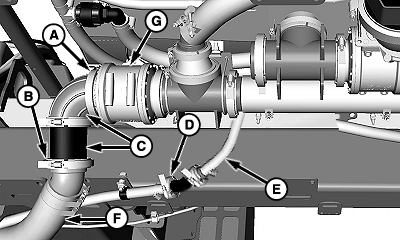

   N110837-UN-19MAR14

   A - Clamp

   B - Clamp

   C - Fittings

   D - Clamp

   E - Front Fill Purge Line

   F - Front Fill Hose

   G - Front Fill Isolation Valve

   Clean area around connections before removing hoses to prevent contamination.

   Catch any fluids in a suitable container.

   Remove and retain clamps (A and B) and fittings (C).

---




2. Install gasket, cap and clamp on front fill hose (F) and front fill isolation valve (G).

3. Retain hose to frame using tie bands.

4. Remove and retain clamp (D).

5. Cover end of front fill purge line (E) and retain to solution plumbing.

6. Install gasket, clamp and cap on remaining end of front fill purge line and retain to frame.
