Clean Solution System

N98792-UN-12JUL13

Non-EU Drain Valve

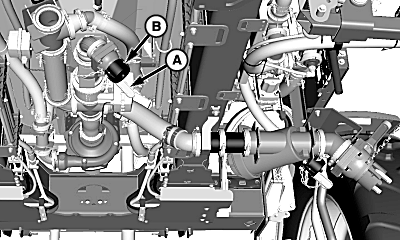

N110129-UN-05FEB14

EU Drain Valve

A - Valve Handle

B - Cap

CAUTION: Chemicals and pesticides are hazardous and can poison causing serious injury or death to you or others. All spraying equipment should be decontaminated before being overhauled or placed in storage. Decontamination should be done in a safe area by washing with water, neutralization, or by means recommended by the chemical manufacturer.

Check to see if special cleaning techniques are necessary. Sprayers must be cleaned whenever chemicals are changed or stored.

Flush the system as follows:

1. Mix household detergent with 95 L (25 gal) of water or use SprayMaster Spray Tank Cleaner (N305631) and circulate through system for 30 minutes, then drain.

2. Mix 0.95 L (1 qt.) of household ammonia with 95 L (25 gal) of water. Pump enough of this mixture to fill the nozzles and let stand overnight.

3. Remove cap (B) and rotate valve handle (A) to open position to drain system.

4. Flush system with clean water.

5. Flush system with SprayMaster Winterizer Fluid (N305634) if machine is to be stored in a climate colder than 0° C (32° F).
