Operate Rinse System—EU Machines Only

1. CAUTION: Spray system can contain hazardous material which can cause serious injury or death to you or others. Wear protective clothing, eyewear, and gloves. Use rinse system in a area where people, animals, vegetation, and water supply etc. cannot be contaminated.

   NOTE: To rinse entire system, solution tank must be empty.

   System rinse must be set up using GS3 display before rinse procedure can be operated from load station. (See Setup System Rinse in SprayStar section of this manual.)

   Rinse procedures can be activated from cab using GS3 display but operator must still open eductor valves manually to rinse hopper.

   The operator must complete three triple rinse cycles (for a total of nine rinses) at the medium volume setting to adequately rinse solution system. This will require the rinse tank to be filled a total of 3 times.


   N94530-UN-21SEP11


   N103401-UN-24APR13

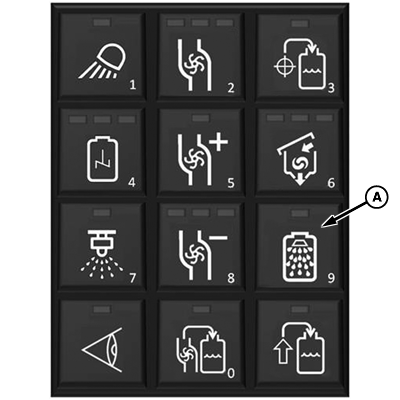

   A - Rinse Button

   B - System Rinse Button

   C - Boom Rinse Button

   D - Cancel Button

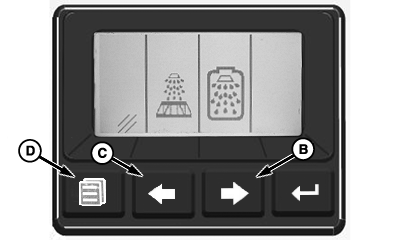

   Press rinse button (A).

---




2. Press system rinse button (B) or boom rinse button (C) to select desired rinse procedure. Press cancel button (D) to cancel rinse procedure.

3.
   N103402-UN-24APR13

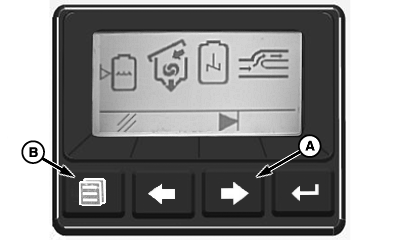

   A - Advance Button

   B - Cancel Button

   System rinse selected:

   1. Rinse procedure begins automatically and rinses the following systems:

      • Eductor
      • Agitation
      • Bypass
      • Load Command—if equipped
      • Solution Tank
      • Boom



      NOTE: When rinsing eductor operator must manually open eductor rinse and sump valves when display shows that portion of rinse cycle.

   2. Press advance button (A) to skip to next step if desired.

   3. Press rinse button or cancel button (B) to stop automatic rinse.

   4. After rinse procedure is complete, spray rinse solution in a safe location where contamination can not occur.

---




4.
   N103403-UN-24APR13

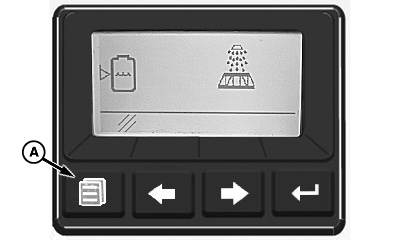

   A - Cancel Button

   Boom rinse selected:

   1. Rinse procedure begins automatically and rinses the following:

      • Boom Plumbing
      • Flowmeters
      • Pressure Strainers



   2. Press cancel button (A) to stop rinse procedure.

   NOTE: Boom rinse procedures can be operated from the cab using the GS3 display. (See Setup System Rinse or Rinsing Boom in SprayStar section of this manual.)

---
