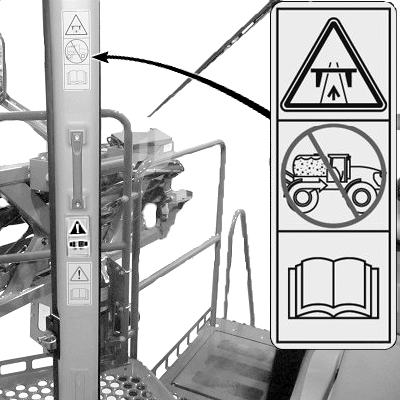

Road Transport Decal

N104091-UN-30MAY13

Transport Decal

Warning—Avoid serious injury or death resulting from loss of control or collision due to machine overload during transport.

IMPORTANT: During transport do not exceed tire maximum load.

For vehicle speeds of 32 to 48 km/h (20 to 30 mph) follow table:

R4030 Maximum Transport Load
Liquid System Installed	Product Density	Maximum Transport Load
	All Products	3000 L (800 gal.)
Dry System Installed	Less Than 1000 kg per cubic meter (62 lb per cubic foot	6 cubic meters (200 cubic feet)
	More Than 1000 kg per cubic meter (62 lb per cubic foot	3 cubic meters (100 cubic feet)

R4038 and R4045 Maximum Transport Load
Liquid System Installed	Product Density	Maximum Transport Load
R4038	All Products	3800 L (1000 gal.)
R4045	All Products	4542 L (1200 gal.)
Dry System Installed	Less Than 1000 kg per cubic meter (62 lb per cubic foot	6 cubic meters (200 cubic feet)
	More Than 1000 kg per cubic meter (62 lb per cubic foot	3 cubic meters (100 cubic feet)

IMPORTANT: Transport on roadways with liquid in the solution tank MAY BE PROHIBITED. Read all certification documents and comply with the restrictions indicated for your machine.

Do not transport vehicle above 48 km/h (30 mph) unless solution tank or dry spinner box is empty.

Always follow your local and national roadway transport regulations.

Never exceed your local or national maximum speed limits. See Speed Limit Decal in the Specification section.
