Fill Solution Tank with Sprayer Pump

1. CAUTION: Read carefully the directions printed on the chemical manufacturer's labels before handling chemicals, exposure to hazardous materials could poison and injure you.

   IMPORTANT: Do not add chemical to tank until just before field use. Follow the chemical manufacturer's instructions for mixing the spray solution to obtain the desired application rate and effect.

   CAUTION: Quik-Fill valve (A) can contain hazardous materials which can poison causing serious injury or death to you or others. Before removing Quik-Fill cap (B), verify Quik-Fill valve is closed.


   N99947-UN-11JUL13

   Side Quik-Fill


   N116426-UN-11MAR15

   A - Quik-Fill Valve

   B - Cap

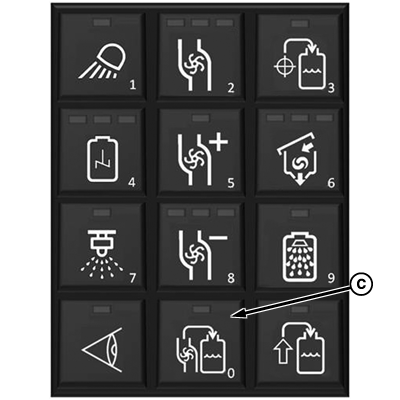

   C - Pull-On Fill Button

   Verify Quik-Fill valve (A) is closed.

---




2. Open lock levers and remove cap (B).

3. Connect nurse tank fill hose to Quik-Fill adapter, close lock levers.

4. IMPORTANT: Prevent solution pump damage caused by running pump dry, observe the following guidelines:

   • Ensure fill hose is the shortest length possible
   • If solution tank is empty perform a low volume rinse cycle to prime pump. See Operate Rinse System in this section.
   • Rinse cycle can be ended after pump priming is achieved.



   Open nurse tank valve.

5. Open Quik-Fill valve, press pull-on button (C).

6. NOTE: Auto fill shuts down when upper tank level switches are reached.

   After solution tank has filled to desired level, close nurse tank and Quik-Fill valves.

7. Remove fill hose from Quik-Fill adapter and replace cap.
