Fill Solution Tank with Sprayer Pump and Front Quik-Fill—If Equipped

1. CAUTION: Read carefully the directions printed on the chemical manufacturer's labels before handling chemicals, exposure to hazardous materials could poison and injure you.

   IMPORTANT: Do not add chemical to tank until just before field use. Follow the chemical manufacturer's instructions for mixing the spray solution to obtain the desired application rate and effect.

   CAUTION: Quik-Fill valve (A) can contain hazardous materials which can poison causing serious injury or death to you or others. Before removing Quik-Fill cap (B), verify Quik-Fill valve is closed.

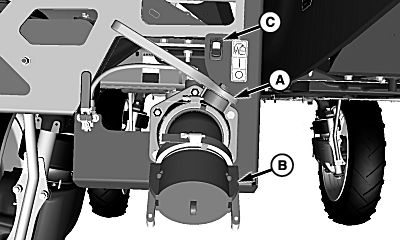

   N102217-UN-16MAY13

   A - Front Quik-Fill Valve

   B - Cap

   C - Switch

   Verify front Quik-Fill valve (A) is closed.

---




2. Open lock levers and remove cap (B).

3. Connect nurse tank fill hose to Quik-Fill adapter, close lock levers.

4. IMPORTANT: Prevent solution pump damage caused by running pump dry, observe the following guidelines:

   • Ensure fill hose is the shortest length possible
   • If solution tank is empty perform a low volume rinse cycle to prime pump. See Operate Rinse System in this section.
   • Rinse cycle can be ended after pump priming is achieved.



   Open nurse tank valve and Quik-Fill valve.

5. Move switch (C) to ON position then press switch to Pull-on position to begin fill process.

6. NOTE: Auto fill shuts down when upper tank level switches are reached.

   Move switch to OFF position to end fill when desired level is reached.

7. After solution tank has filled, close nurse tank and Quik-Fill valves.

8. Remove fill hose from Quik-Fill valve and replace cap.
