Dimensions—All Machines

NOTE: Refer to dimensions (E) for standard machine maximums when transporting machine.

Dimensions for bareback and dry box machines are within those shown for the machine with wet system.

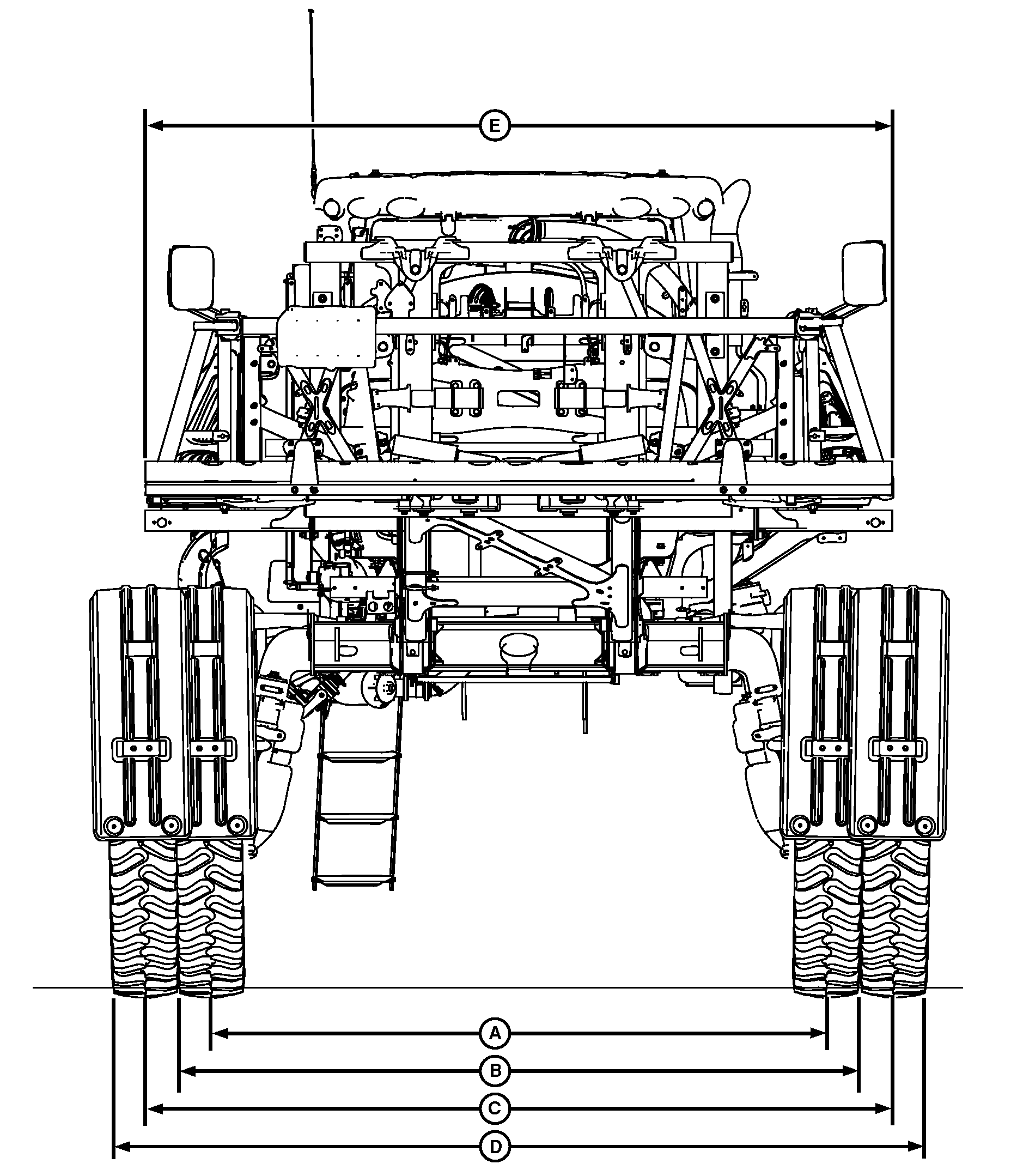

N103397-UN-19APR13

A - Narrowest Tread Setting, 3048 mm (120 in.)

B - Widest Point on Wheels at Narrow Setting (planetary hub), 3493 mm (137.5 in.)¹

C - Widest Tread Setting, 4064 mm (160 in.)

D - Widest Point on Wheels at Widest Setting (planetary hub), 4860 mm (177.5 in.)¹

E - Boom Width—Boom Folded (Maximum Machine Width), 3658 mm (144 in.)
