Identification Numbers

N116432
N116432-UN-16MAR15

A - Product Identification Number

Copy these pages to record component serial numbers. This helps when acquiring service parts.

The product identification number (A) is on right-hand side of frame.

Product Identification Number _________________________

N116434
N116434-UN-16MAR15

6.8 L Engine

N116133
N116133-UN-01APR15

9.0 L Engine

A - Engine Serial Number

The engine serial number (A) is on the left-hand side of the 6.8 L engine block. The engine serial number (A) is on the right-hand side of engine block.

Engine Serial Number _______________________________

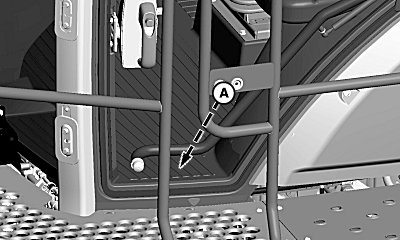

N116435
N116435-UN-16MAR15

A - Cab Serial Number

The cab serial number (A) is located near the door under the floor mat.

Cab Serial Number ________________________

N98889
N98889-UN-17SEP12

A - Monitor Serial Number

The monitor serial number is located on the back of the monitor.

Monitor Serial Number ________________________________

NOTE: Serial number information for Steering System Control Unit, Chassis Control Unit, Engine Control Unit, and Boom Controller can be retrieved from the SprayStar display.

The steering system control unit (not shown) serial number is on the unit located behind the operator seat.

Steering System Control Unit Serial Number _______________________

N109337
N109337-UN-20JAN14

A - Chassis Control Unit

The chassis control unit serial number is on the unit located on air cleaner assembly.

Chassis Control Unit Serial Number _______________________________

N98888
N98888-UN-17SEP12

A - Engine Control Unit

The engine control unit serial number is located on the unit on the left side of the engine.

Engine Control Unit Serial Number _______________________________

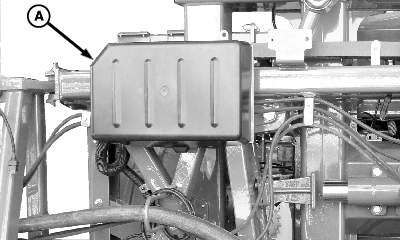

N98887
N98887-UN-17SEP12

A - Boom Height Controller

The boom height control unit serial number is located on the unit on the rear of the machine on suspended center frame.

Boom Height Controller Serial Number _______________________________

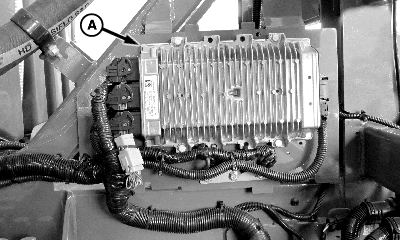

N98886
N98886-UN-17SEP12

A - Solution System Control Module

The solution system control module (A) is located on the solution skid near the left-hand rear tire.

Solution System Control Module Serial Number _____________________________
