Field Operation

1. CAUTION: Do not turn on the machine until you are sure nobody is in the danger zone.


   N67612-UN-16SEP04

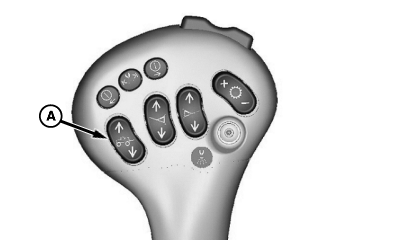

   A - Raise/Lower Switch

   Unfold boom and press raise/lower switch (A) to position boom at desired operating height.

---




2. Setup SprayStar control unit for your particular application. (See SprayStar System section for proper setup procedure.)

3. Verify tank is loaded with solution.

4. NOTE: Solution pump will automatically shut off after a brief time if no solution flow is detected to prevent overheating and damage to seals.


   N98755-UN-26SEP12

   A - Solution Pump Switch

   Push solution pump switch (A) to engage solution pump.

---




5.
   N98782-UN-24APR13


   N116938-UN-02APR15

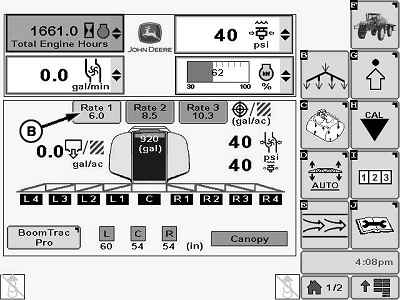

   A - Rate Selection Switch

   B - Selected Rate

   View spray operation display on monitor screen.

---




6. Turn rate selection switch (A) to desired application rate (1, 2 or 3) or to manual pressure setting (MAN).

   NOTE: Rate selected (B) will be highlighted on monitor screen.

7.
   N98756-UN-17SEP12


   N98757-UN-17SEP12

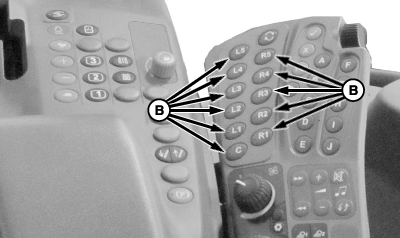

   11 Boom Section Switches (90-120 ft Boom)


   N99097-UN-22MAY13


   N116939-UN-02APR15

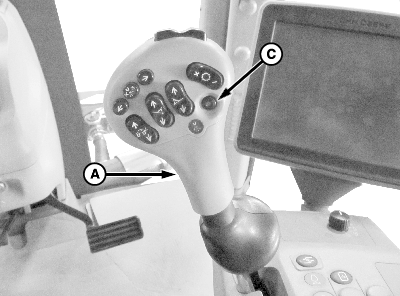

   A - Multifunction Control Handle

   B - Boom Section Switches

   C - Master ON/OFF Switch

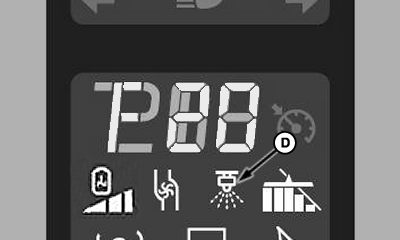

   D - Master Spray On/Off Indicator

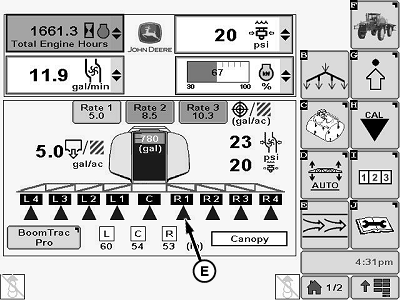

   E - Cone

   Push multifunction control handle (A) slowly forward to start forward motion.

---




8. Press boom section switches (B) to select desired on/off position for each section.

   NOTE: Enabled booms have black fill color indication on the display.

9. Press master ON/OFF switch (C) to start spraying operation.

   NOTE: Actively spraying boom sections have cone (E) indication under the boom section on the display.

   Spray - Master On Indicator (D) is illuminated when Master On switch is activated on multifunction control handle.

10. NOTE: Spray system shut-down is not immediate. Solution flow will continue for a few seconds after pressing Master ON/OFF switch. For best response time and coverage, turn spray off as you slow for row end.


    N66488-UN-15SEP04

    A - Master ON/OFF Switch

    At row end, press Master ON/OFF switch (A) to stop spraying. All other switches can remain in pre-set positions.

    NOTE: Spray system start-up is not immediate. To overcome delayed response, press master ON/OFF switch while moving forward to start spraying just before solution is actually needed.

---




11. When aligned with next row, press master ON/OFF switch to resume spraying.
