Operate IBS

N63297
N63297-UN-15JUL03

A - IBS Left Button

B - IBS Reset Button

C - IBS Right Button

This machine is equipped with indexed boom section switching. This gives the operator another way to shut off boom spray sections in sequence without removing your hand from the multifunction control handle. This function is useful when working with point rows and waterways.

There are three buttons they operate as follows:

  • Use IBS Left Button (A) to sequentially shut off individual boom sections starting at right-hand end of boom moving to left.
  • Use IBS Reset Button (B) to restart all shut-off sections that are enabled.
  • Use IBS Right Button (C) to sequentially shut off individual boom sections starting at left-hand end of boom moving to right.

N102414
N102414-UN-25FEB13

N116942
N116942-UN-02APR15

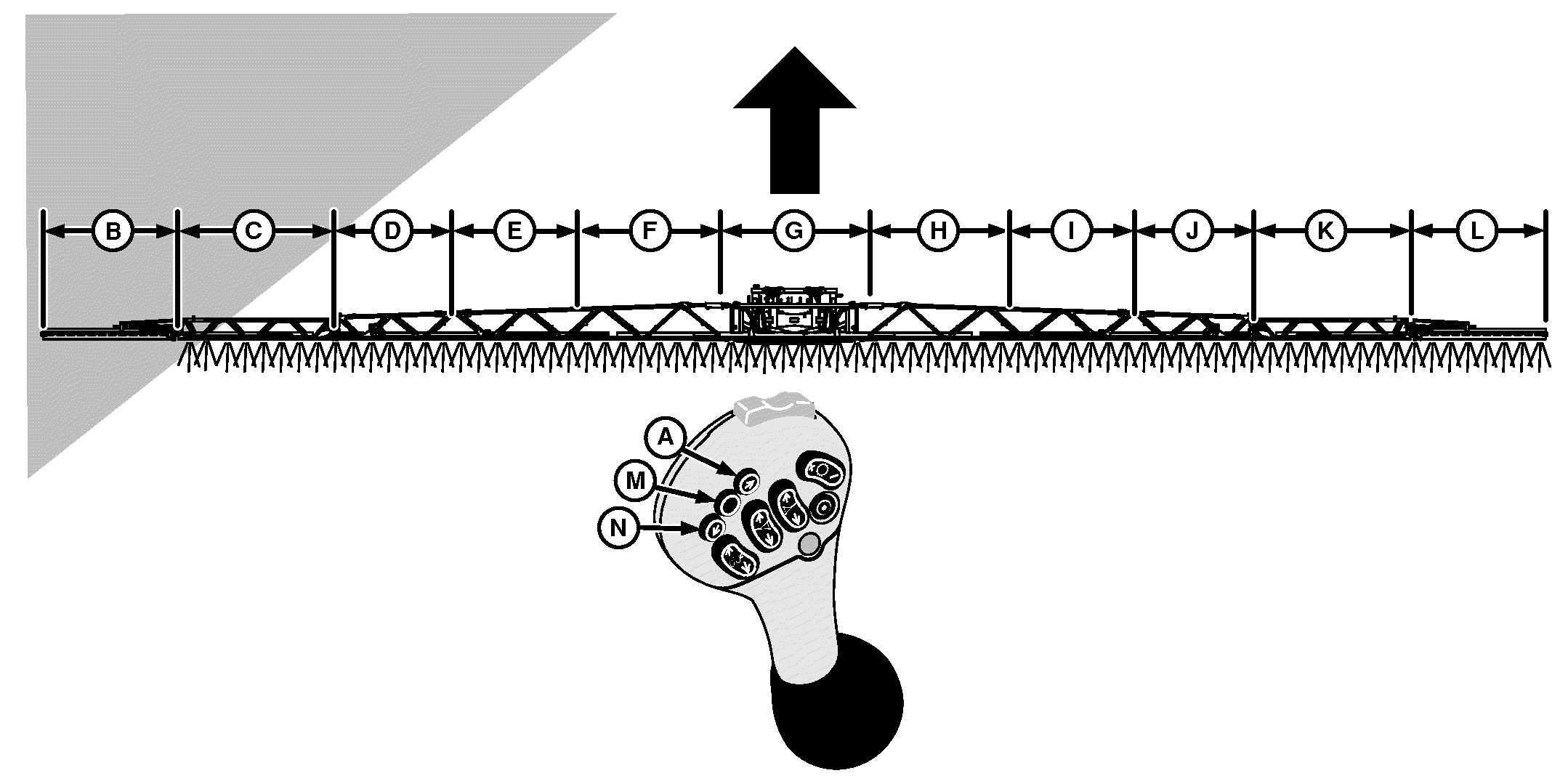

A - IBS Right Button

B - “L5” Boom Spray Section

C - “L4” Boom Spray Section

D - “L3” Boom Spray Section

E - “L2” Boom Spray Section

F - “L1” Boom Spray Section

G - “C” (Center) Boom Spray Section

H - “R1” Boom Spray Section

I - “R2” Boom Spray Section

J - “R3” Boom Spray Section

K - “R4” Boom Spray Section

L - “R5” Boom Spray Section

M - IBS Left Button

N - IBS Reset Button

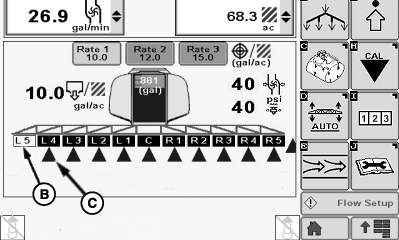

EXAMPLE:If you are coming upon an angled waterway and you would like to shut off sections in sequence from left to right, press and release IBS right button (A) once to shut off left-hand outer boom section (B) (L5 on display). Sections disabled by the IBS feature have a white background with outline box. Press and release button (A) again to shut off section (C) (L4 on display). Continue to press and release button (A) to shut off remaining sections across the entire boom.

Once all sections have been shut off, press and release button (A) again to turn on section (B), then (C) and so on.

If only a few sections have been turned off using button (A), you can turn them back on in sequence one at a time using button IBS left button (N) or turn them all back on at once using IBS reset button (M).

Sections can be shut off from the right-to-left using button (N).

NOTE: The fence row nozzles will shut off when the outermost boom sections are switched off.

If a boom section is disabled using the boom section switch on the CommandArm it will be ignored when turning boom sections on/off using IBS function.

CS12167,0000760-19-20150330
