Start the Engine

1. CAUTION: Prevent asphyxiation. Engine exhaust fumes can cause sickness or death to you or others.

   If you must operate engine in a building, be positive there is adequate ventilation. Use an exhaust pipe extension to remove the exhaust fumes or open doors and windows to bring enough outside air into the area.

   Avoid the possibility of personnel injury or death:

   • Be sure that everyone is clear of the machine
   • Start engine only from the operator seat
   • Do not start engine by shorting across starter terminals. Machine may start in gear if normal circuitry is bypassed
   • Engine starting with the multifunction control handle out of the “Park” position indicates a malfunction of the starting circuit. Repairs should be made immediately by your John Deere Dealer



   NOTE: On-board electronics may require slightly longer cranking times during engine start-up.


   TS220-UN-15APR13


   TS177-UN-11JAN89


   N98748-UN-17SEP12

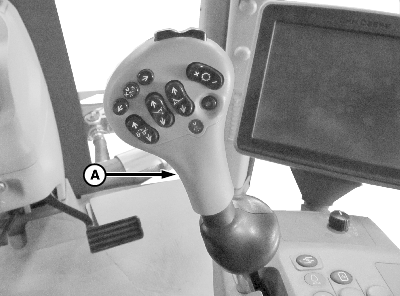

   A - Multi-Function Lever

   Make sure:
   • Multi-function lever (A) is in Park position
   • Sound horn



---




2. Turn ignition key to Accessory/Run position.

3. IMPORTANT: Do not operate starter more than 30 seconds at a time or starter may be damaged. If engine does not start, wait at least 2 minutes before trying again. If engine does not start in four attempts, refer to Troubleshooting section.

   To assure adequate lubrication after engine starts, idle engine at approximately 900 rpm with no load for 1—2 minutes. Extend this period when operating at temperatures below freezing.

   When starting the machine during cold temperatures a starting aid may be necessary. (See Cold Weather Starting Procedure in this section.)


   N100187-UN-17JUL13

   A - Coolant Temperature

   Turn ignition key clockwise to Start position, engaging the starter. Release key when engine starts. If key is released before engine starts, wait until starter and engine stop turning before trying again.

---




4. When the engine has started, stop and caution indicator lights will go off when ignition key is released.

5. View the engine coolant temperature (A) on the primary display unit.

   IMPORTANT: Protect turbocharger during start-up by not accelerating above 1000 rpm until normal engine idle speed is established (900 rpm).

   NOTE: Should engine stall while operating under load, restart it immediately to prevent overheating and possible turbocharger damage.
