Transport Lock Switch

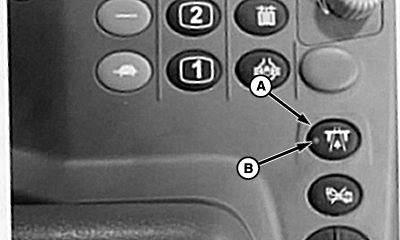

N97493-UN-17SEP12

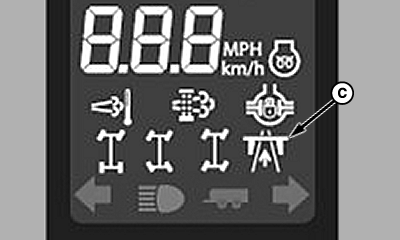

N102007-UN-22MAY13

A - Transport Lock Switch

B - Indicator Light

C - Primary Display Unit Indicator

The Transport Lock should be engaged when traveling on the road. To engage, press the transport lock switch (A). Primary display unit indicator (C) will light when transport lock is engaged. The transport lock indicator light (B) will illuminate and the following functions will be disabled:

• Master ON/OFF switch
• Tread adjustment
• Hydraulic boom movements (folding/unfolding)

Press and hold switch for 2 seconds to turn Transport Lock off.
