Visually Inspect Service Brake Components—100 Hours

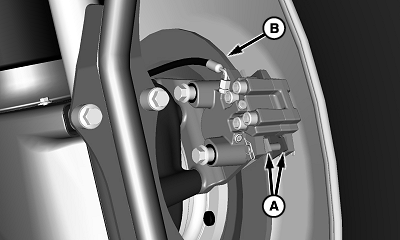

N102222-UN-11FEB13
A - Brake Pads
B - Rotor
Visually inspect brake pads (A) and rotors (B) on both front wheels for deep grooves, signs of overheating, or premature wear. If any of these conditions exists, (see your John Deere dealer).|
CS12167,000076A-19-20150331 |
