Machine Informational Decals

Tire Decals

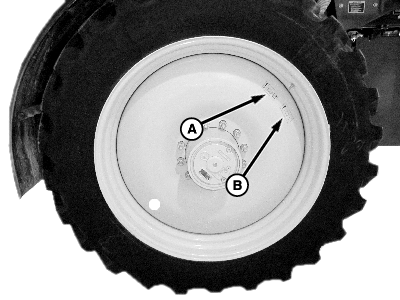

N99103-UN-17SEP12

A - Tire Pressure

B - Wheel Hardware Torque

Decal A:

IMPORTANT: Maintain proper inflation pressure to prolong tire life.

Decal B:

IMPORTANT: Torque each nut to 700 Nm (516 lb.-ft.). Retorque after 1 hour and daily until torque is maintained. Repeat operation each time nuts are loosened. Check torque every 100 hours of operation thereafter.

R4030 Recommended Tire Inflation Pressure
Tire Size	Wet System				Dry System
	27.4 /30.4 M (90/100 ft.) without Direct Injection (DI)	27.4 /30.4 M (90/100 ft.) with Direct Injection	36.6 M (120 ft.) without DI	36.6 M (120 ft.) with DI	200 cubic foot Spreader
IF320/90R50 - 161D1	441 kPa (64 psi)	441 kPa (64 psi)	441 kPa (64 psi)	441 kPa (64 psi)	441 kPa (64 psi)
IF320/105R46 - 166D	421 kPa (61 psi)	441 kPa (64 psi)	441 kPa (64 psi)	462 kPa (67 psi)	421 kPa (61 psi)
VF380/90R46 - 173D	248 kPa (36 psi)	283 kPa (41 psi)	283 kPa (41 psi)	303 kPa (44 psi)	248 kPa (36 psi)
IF380/90R46 - 168D	338 kPa (49 psi)	379 kPa (55 psi)	379 kPa (55 psi)	400 kPa (58 psi)	338 kPa (49 psi)
380/90R46 - High Capacity - 168A8/B	427 kPa (62 psi)	441 kPa (64 psi)	441 kPa (64 psi)	462 kPa (67 psi)	462 kPa (67 psi)
380/90R46 - Standard Capacity - 163A8/B	427 kPa (62 psi)	441 kPa (64 psi)	441 kPa (64 psi)	462 kPa (67 psi)	462 kPa (67 psi)
IF420/80R46 - 167D	303 kPa (44 psi)	338 kPa (49 psi)	338 kPa (49 psi)	358 kPa (52 psi)	303 kPa (44 psi)
520/85R38 - 169A8/B	248 kPa (36 psi)	269 kPa (39 psi)	269 kPa (39 psi)	289 kPa (42 psi)	276 kPa (40 psi)
620/70R38 - 170A8/B	207 kPa (30 psi)	221 kPa (32 psi)	221 kPa (32 psi)	241 kPa (35 psi)	241 kPa (35 psi)
650/65R38 - 166D	186 kPa (27 psi)	214 kPa (31 psi)	200 kPa (29 psi)	228 kPa (33 psi)	207 kPa (30 psi)

R4038 Recommended Tire Inflation Pressure
Tire Size	Wet System				Dry System
	27.4 /30.4 M (90/100 ft.) without Direct Injection (DI)	27.4 /30.4 M (90/100 ft.) with Direct Injection	36.6 M (120 ft.) without DI	36.6 M (120 ft.) with DI	200 cubic foot Spreader
IF320/105R46 - 166D	462 kPa (67 psi)	483 kPa (70 psi)	483 kPa (70 psi)	483 kPa (70 psi)	421 kPa (61 psi)
VF380/90R46 -173D	317 kPa (46 psi)	338 kPa (49 psi)	338 kPa (49 psi)	358 kPa (52 psi)	248 kPa (36 psi)
IF380/90R46 - 168D	400 kPa (58 psi)	441 kPa (64 psi)	441 kPa (64 psi)	462 kPa (67 psi)	338 kPa (49 psi)
IF420/80R46 - 167D	379 kPa (55 psi)	400 kPa (58 psi)	400 kPa (58 psi)	420 kPa (61 psi)	303 kPa (44 psi)
520/85R38 - 169A8 / B	310 kPa (45 psi)	338 kPa (49 psi)	338 kPa (49 psi)	358 kPa (52 psi)	276 kPa (40 psi)
620/70R38 - 170A8/B	290 kPa (42 psi)	310 kPa (45 psi)	310 kPa (45 psi)	330 kPa (48 psi)	241 kPa (35 psi)
650/65R38 - 166D1	269 kPa (39 psi)	283 kPa (41 psi)	283 kPa (41 psi)	283 kPa (41 psi)	221 kPa (32 psi)

R4045 Recommended Tire Inflation Pressure
Tire Size	Wet System				Dry System
	27.4 /30.4 M (90/100 ft.) without Direct Injection (DI)	27.4 /30.4 M (90/100 ft.) with Direct Injection	36.6 M (120 ft.) without DI	36.6 M (120 ft.) with DI	200 cubic foot Spreader	300 cubic foot Spreader
IF380/105R50 - 177D	427 kPa (62 psi)	455 kPa (66 psi)	441 kPa (64 psi)	469 kPa (68 psi)	359 kPa (52 psi)	441 kPa (64 psi)
VF420/95R50	310 kPa (45 psi)	331 kPa (48 psi)	331 kPa (48 psi)	352 kPa (51 psi)	276 kPa (40 psi)	324 kPa (47 psi)
480/80R50 - 176A8/B	448 kPa (65 psi)	469 kPa (68 psi)	462 kPa (67 psi)	476 kPa (69 psi)	414 kPa (60 psi)	469 kPa (68 psi)
620/70R46 - 176A8/B	283 kPa (41 psi)	296 kPa (43 psi)	289 kPa (42 psi)	303 kPa (44 psi)	283 kPa (41 psi)	345 kPa (50 psi)
710/60R46 - 178D	207 kPa (30 psi)	241 kPa (35 psi)	221 kPa (32 psi)	255 kPa (37 psi)	193 kPa (28 psi)	228 kPa (33 psi)
710/65R46 - 183D	193 kPa (28 psi)	228 kPa (33 psi)	200 kPa (29 psi)	241 kPa (35 psi)	172 kPa (25 psi)	207 kPa (30 psi)
IF800/55R46 - 175D	186 kPa (27 psi)	200 kPa (29 psi)	193 kPa (28 psi)	207 kPa (30 psi)	262 kPa (38 psi)	186 kPa (27 psi)

Remote Terminal Decal

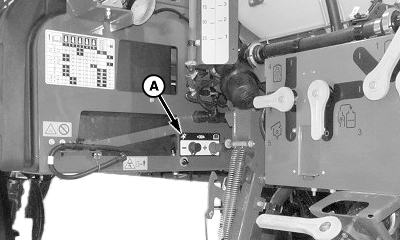

N106669-UN-19SEP13

A - Decal

Remote terminals are for auxiliary electrical power. Do not exceed 30 amps.

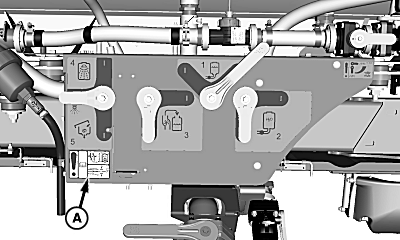

Solution Pump Decal

N106670-UN-19SEP13

A - Decal

IMPORTANT: If loading sprayer using the high flow sprayer pump, a 3 inch hose and fittings should be used or pump seal damage will occur. See operator’s manual.

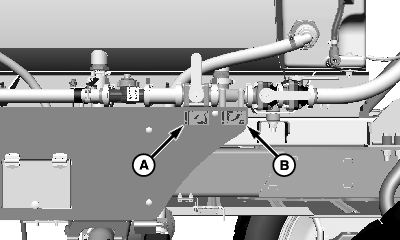

High Flow Shut-off and Orifice Valve Instructional Decals

N102018-UN-11FEB13

A - High Flow Valve Decal

B - Orifice Valve Decal

Decal A:

IMPORTANT: Close valve when solution flow rate is 380 L/m (100 gpm.) or less.

Decal B:

IMPORTANT: Close valve when solution flow rate is 100 L/m (26 gpm.) or less.

Front Fill Switch Decal

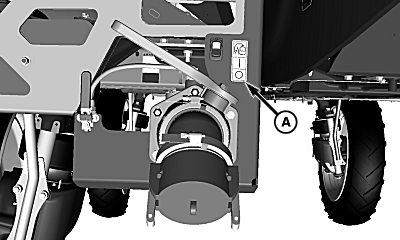

N99101-UN-16MAY13

A - Decal

Pull-On Position: Solution pump ON to load solution.

ON Position: Front fill isolation valve open.

OFF Position: Front fill isolation valve closed.

Load Command Switch Decal

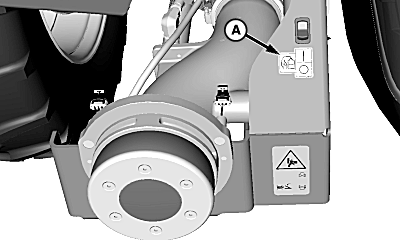

N109669-UN-05FEB14

A - Decal

ON Position: Load Command System is enabled and ready to load solution.

OFF Position: Load Command System is disabled.

Suspension Lubrication Decal

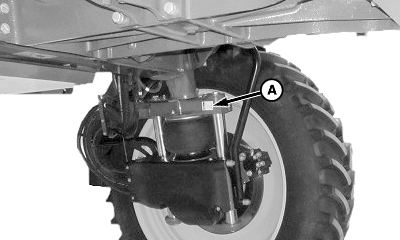

N106671-UN-19SEP13

A - Decal

Decal A:

IMPORTANT: Use only John Deere SD Poly Urea grease. Use of other grease can result in premature wear of the suspension components.

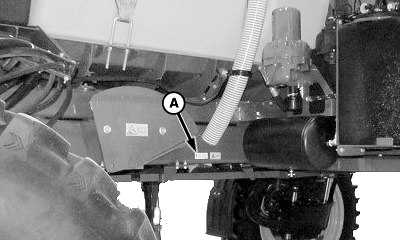

Air Tank Decal

N106672-UN-19SEP13

A - Decal

Decal A:

IMPORTANT: Drain moisture from air tank daily.

Lift Bracket Decal

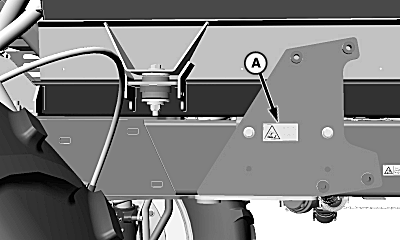

N109670-UN-05FEB14

A - Decal

Decal A:

1. Remove motor shield, and wheel shield if equipped.
2. Attach lift bracket to machine in a horizontal position with provided hardware.
3. When finished using lift bracket, remove bracket and hardware. Reinstall wheel shield and motor shield.

Battery Disconnect Decal

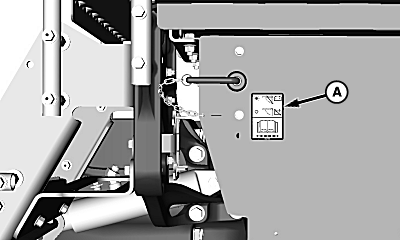

N106673-UN-19SEP13

A - Decal

Decal A:

IMPORTANT: After light turns off, turn handle counterclockwise to disconnect battery.

Component Wash Decal

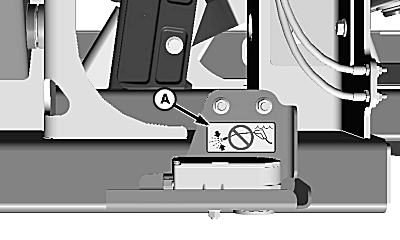

N105926-UN-22AUG13

A - Decal

Decal A:

IMPORTANT: Do not pressure wash these components. Use normal water pressure less then 50 psi (345 kPa).

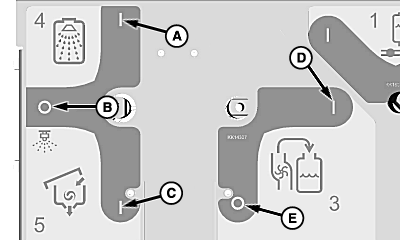

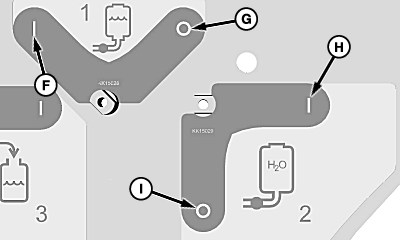

Manual Load Station Decals

N106863-UN-24SEP13

N106864-UN-24SEP13

A - Rinse Position

B - Spray Position

C - Educt Position

D - Load with Sprayer Pump Position

E - Spray or Load with Nurse Pump Position

F - Spray or Load with Nurse Pump Position

G - Load with Sprayer Pump Position

H - Pull From Rinse Tank Position

I - Closed Position
