Adjust Outer Wing Rest

1. IMPORTANT:

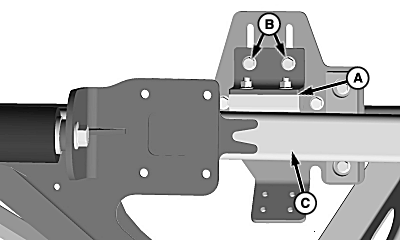

   N116946-UN-02APR15

   A - Outer Wing Rest

   B - Cap Screws

   C - Inner Wing

   Do not adjust outer wing rest (A) before outer fold cylinder is correctly adjusted. (See Adjust Outer Fold Cylinder in this section.)

   Loosen cap screws (B).

---




2. Adjust outer wing rest to obtain contact with inner wing (C).

3. Tighten cap screws.
