Spray Nozzle Calculator

1.
   N101902-UN-08MAY13

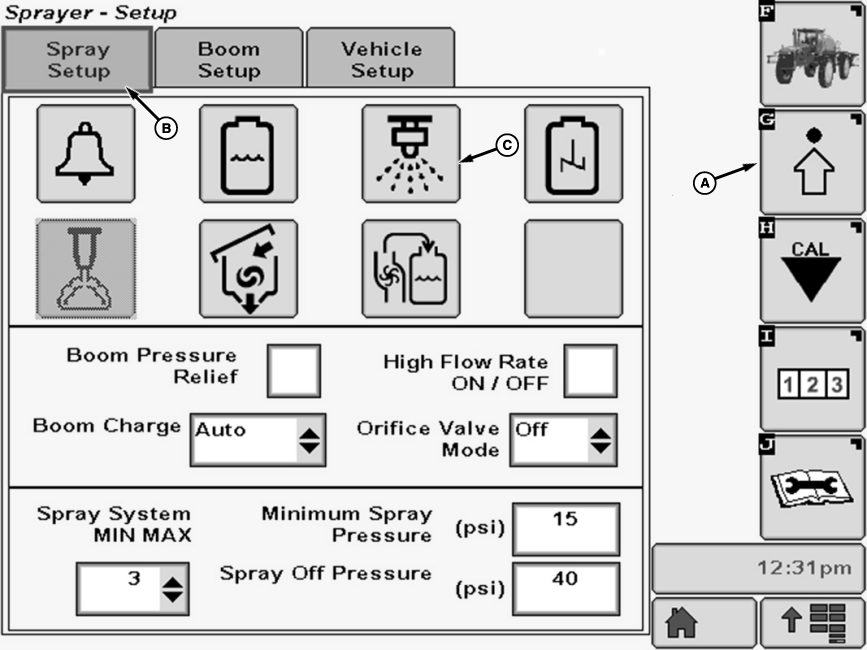

   A - Setup Softkey

   B - Spray Setup Tab

   C - Spray Tip Calculator Button

   Select the Setup softkey (A) to view the setup menu.

---




2. Select the Spray Setup tab (B).

3. Select Spray Tip Calculator Button (C) to access spray tip calculator to determine proper tip size for desired application.

4.

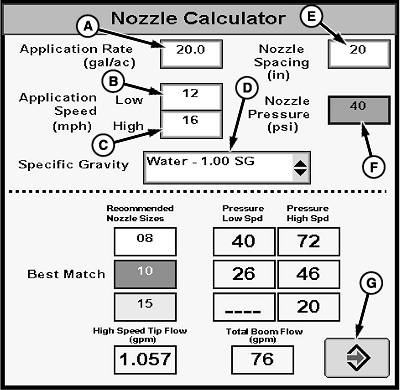

   N116947-UN-02APR15

   A - Application Rate Input Box

   B - Application Speed (Low) Input Box

   C - Application Speed (High) Input Box

   D - Specific Gravity Drop-Down

   E - Nozzle Spacing Input Box

   F - Nozzle Pressure Input Box

   G - Enter Button

   Select input boxes and drop-down (A - F) and input required data using pop-up keypad.

---




5. Press Enter button (G) to calculate nozzle recommendations.
