Replace Open Crankcase Ventilation Filter (9.0 L Engine)—1500 Hours and As Required Thereafter

1. NOTE:

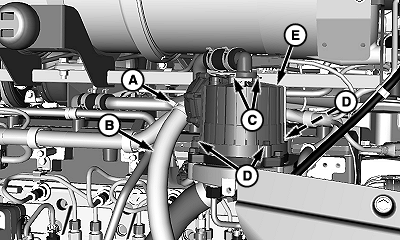

   N103038-UN-10APR13

   A - Clamp

   B - Crankcase Vent Hose

   C - Screws

   D - Cap Screws

   E - Filter Cover

   After the initial filter change at 1500 hours the filter will only need replaced when one of the following diagnostic trouble codes (DTC) is set.
   • 101.16
   • 101.1
   • 101.0



   Raise hood.

---




2. Release clamp (A) and remove crankcase vent hose (B).

3. Remove and retain screws (C).

4. Remove cap screws (D) and filter cover (E).

5. Remove and discard used filter.

6. Install new filter and all previously removed parts.
