Replace Load Center Fuses

NOTE: Fold seat backrest down to allow easier access, and allow cab lighting to shine on load center when fuses are being inspected or replaced.

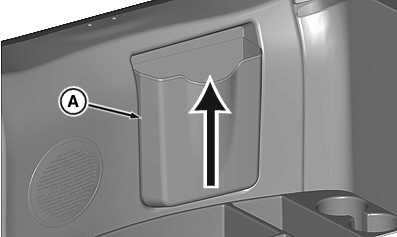

Load center is found directly behind the operator's seat and just below the cab rear window. To access load center, lift up on Operator's Manual holder (A).

RXA0099400-UN-16DEC08

Operator's Manual Holder

A - Operator's Manual Holder

Fuse Rating	Color
3 Amp	Purple
5 Amp	Brown
10 Amp	Red
15 Amp	Blue
20 Amp	Yellow
25 Amp	Clear
30 Amp	Green

IMPORTANT: Do not replace original fuse with higher rated fuse or machine damage may occur. If original size fuse will not carry electrical load and continues to blow, have the electrical system checked by your John Deere dealer.

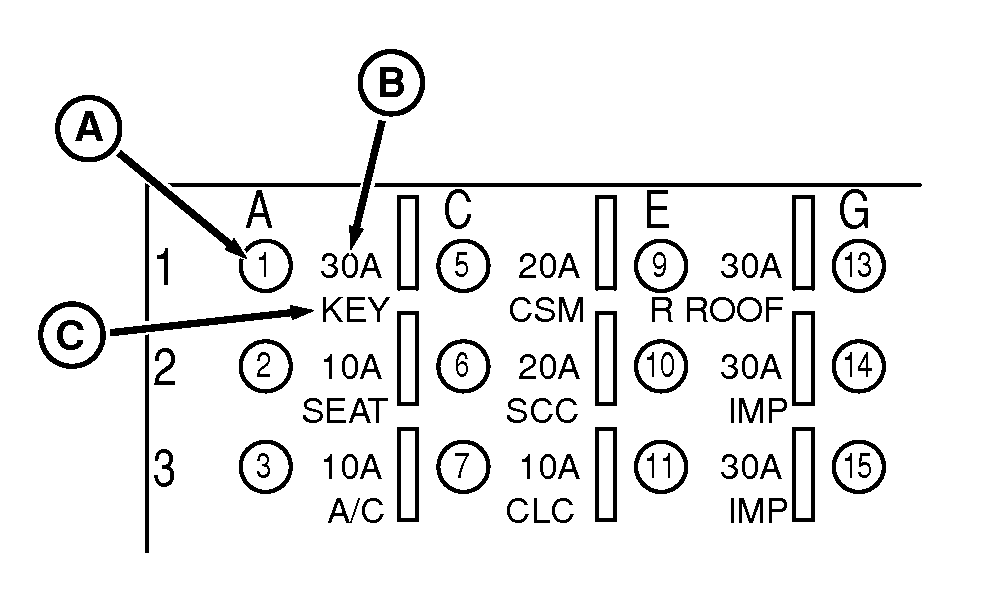

The illustration to the above explains how to read the load center diagram.

RXA0099397-UN-24NOV08

Load Center — Legend

A - Fuse Location Number

B - Fuse Size

C - Fuse Use/Description

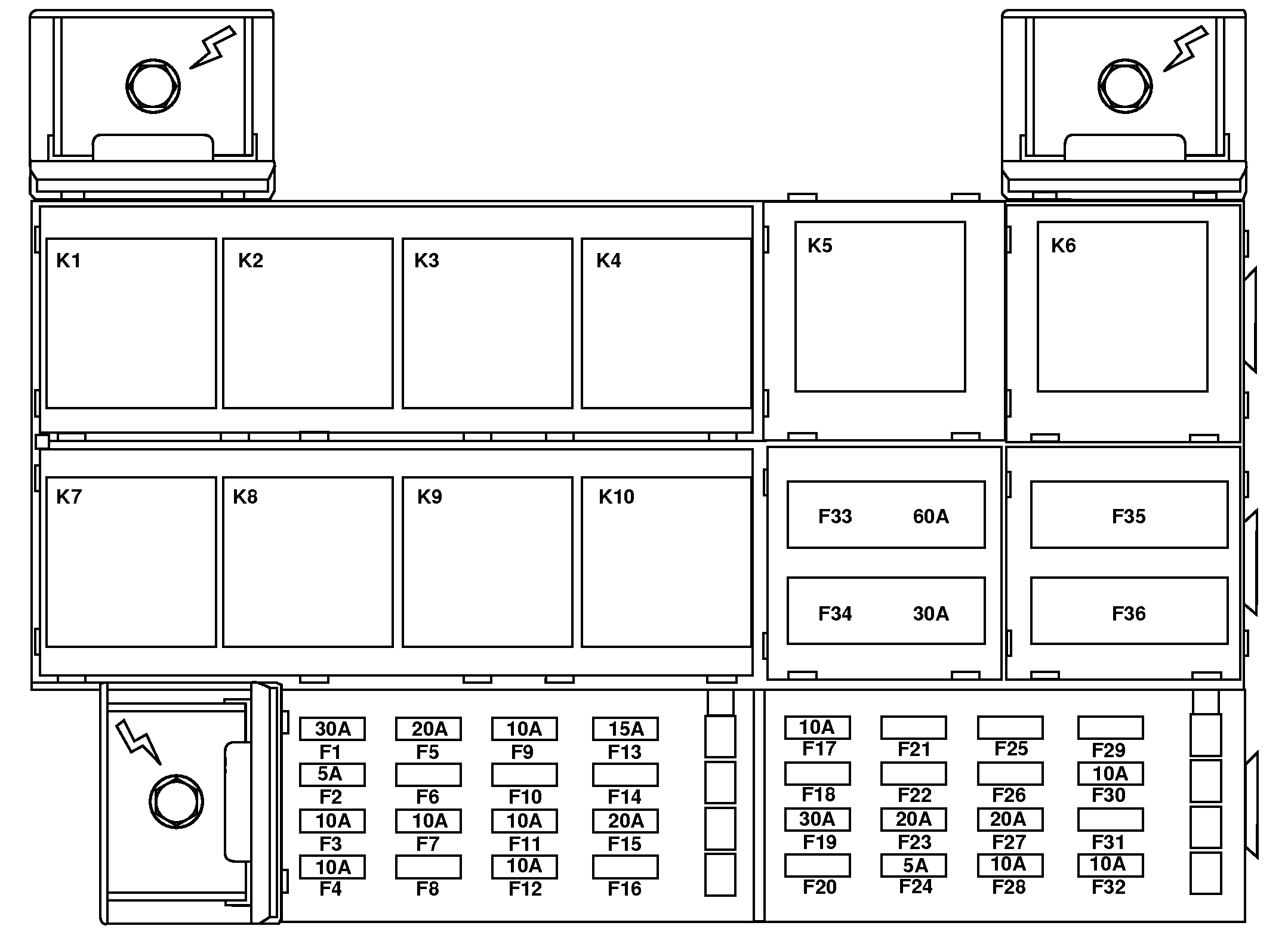

N110143-UN-18FEB14

F1 - Key Switch

F2 - Operator Presence

F3 - ATC Controller

F4 - Lighter / Accessory Outlet

F5 - Radio

F6 - Spare

F7 - MTG B+

F8 - Spare

F9 - ELX Relay Power

F10 - Spare

F11 - Load Command Control Unit

F12 - GPS Display Switched Power

F13 - Steering Braking Backup Control Unit

F14 - Spare

F15 - Customer Unswitched Power

F16 - Spare

F17 - MTG Power

F18 - Spare

F19 - Seat Compressor

F20 - Spare

F21 - Spare

F22 - Spare

F23 - Customer Accessory

F24 - Video Camera

F25 - Spare

F26 - Spare

F27 - Customer Accessory

F28 - CCU

F29 - Spare

F30 - GPS Display B+

F31 - Spare

F32 - Come Home Mode

F33 - Accessory Relay

F34 - Air Conditioning Blower

F35 - Spare

F36 - Spare

K1 - GS3/Starfire

K2 - ELX

K3 - Spare

K4 - Spare

K5 - Air Conditioning Blower

K6 - Accessory

K7 - Spare

K8 - Spare

K9 - Spare

K10 - Neutral Start
