Accessory Electrical Outlet

N118271-UN-22JUN15

N42173QD-UN-30DEC96

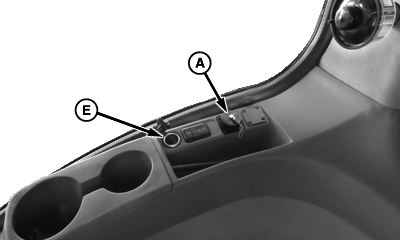

A - Accessory Outlet

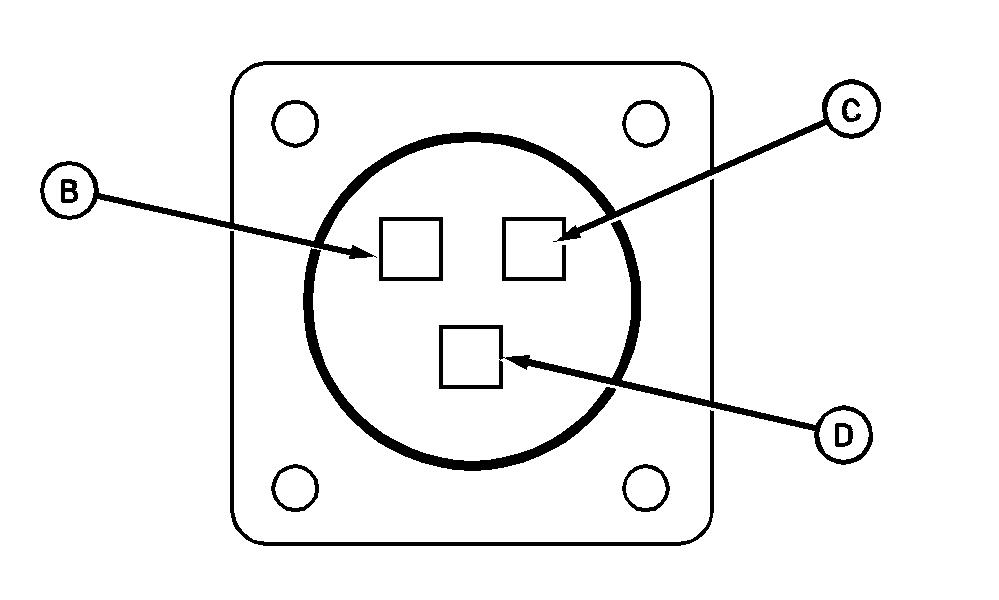

B - Switched Power Circuit Pin

C - Battery Circuit Pin

D - Ground Pin

E - Lighter / Accessory Outlet

12-volt accessory outlets (A and E) are used when connecting auxiliary equipment.

Pin (B) provides (key) switched power, pin (C) provides battery power (hot) and pin (D) is ground. Use auxiliary equipment installation instructions or (see your John Deere dealer).

NOTE: Outlet is protected by a 20A fuse.

Lighter / Accessory Outlet is protected by a 10A fuse.
