Rinse Solution Pump, Flowmeter(s), and Boom —Daily

CAUTION: Spray system can contain hazardous material which can cause serious injury or death to you or others. Wear protective clothing, eyewear, and gloves. Drain solution and clean strainer in an area where people, animals, vegetation and water supply etc., cannot be contaminated.

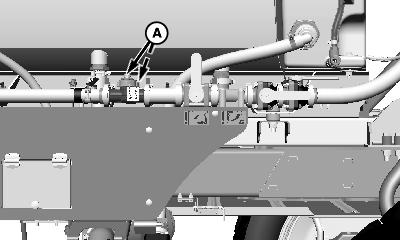

N101658-UN-08APR13

A - Flowmeters

Perform the following before the rinse procedure to prevent chemical build-up in boom plumbing, aspirators, and nozzles bodies:

• Operate boom air purge (if equipped) to remove solution before performing rinse procedure
• Spray rinse water at 6.2 - 6.9 bar (620 - 690 kPa) (90 - 100 psi) to assist in chemical removal
• Position aspirator nozzles to open ports allowing for maximum flow and increased chemical removal

Rinse pump, flowmeter(s)(A), and boom with clean water daily.

(See Operate Rinse System in Manual Load System and Solution Command System sections.)
