Diesel Engine Oil — Tier 2 and Stage II

TS1689-UN-18JUL07

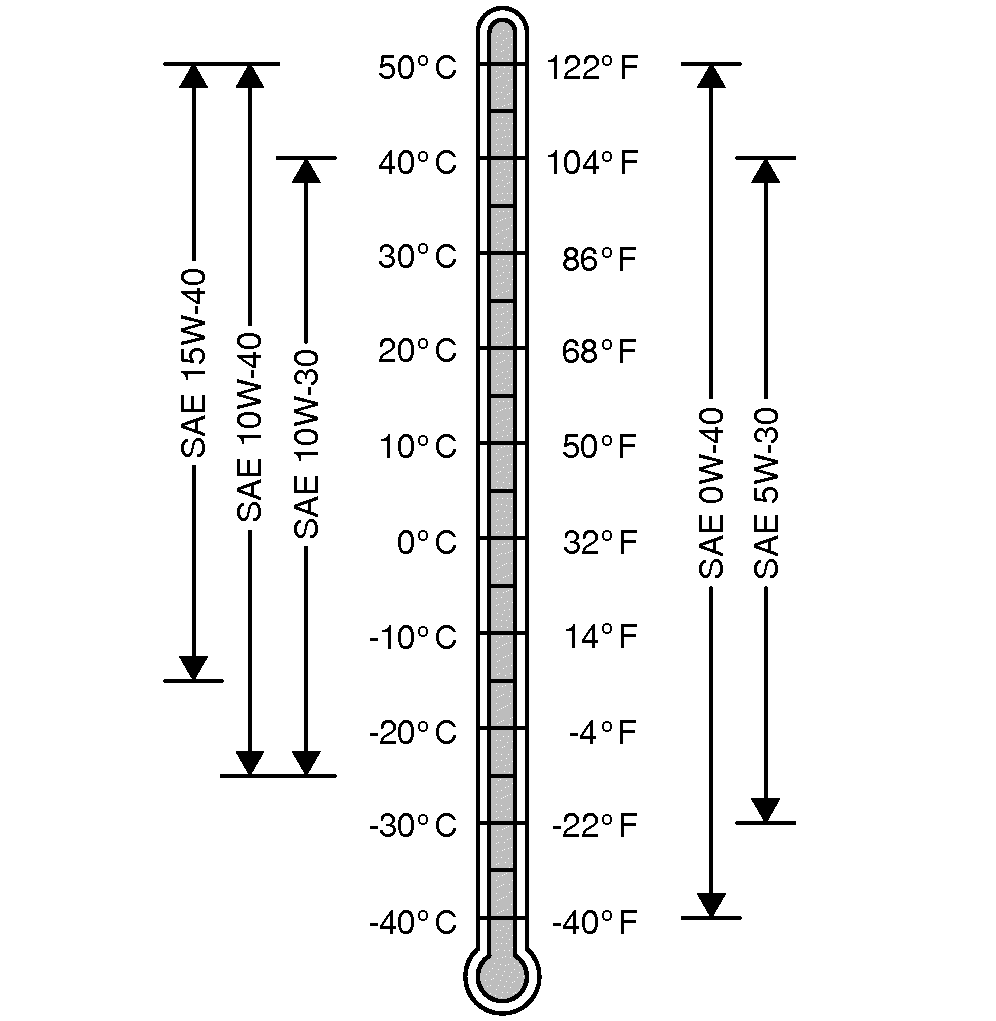

Oil Viscosities for Air Temperature Ranges

Use oil viscosity based on the expected air temperature range during the period between oil changes.

John Deere Plus-50™ II oil is preferred.

John Deere Plus-50™ is also recommended.

Other oils may be used if they meet one or more of the following:

• John Deere Torq-Gard™
• API Service Category CJ-4
• API Service Category CI-4 PLUS
• API Service Category CI-4
• API Service Category CH-4
• ACEA Oil Sequence E9
• ACEA Oil Sequence E7
• ACEA Oil Sequence E6
• ACEA Oil Sequence E5
• ACEA Oil Sequence E4

Multi-viscosity diesel engine oils are preferred.

Diesel fuel quality and fuel sulfur content must comply with all existing emissions regulations for the area in which the engine operates.

DO NOT use diesel fuel with sulfur content greater than 10000 mg/kg (10000 ppm).
