Prepare to Spray

N99943-UN-20AUG13

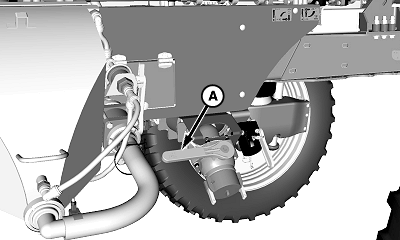

A - Quik-Fill Valve

1. Verify Quik-Fill valve (A) is closed.

2.
   N101655-UN-11APR13

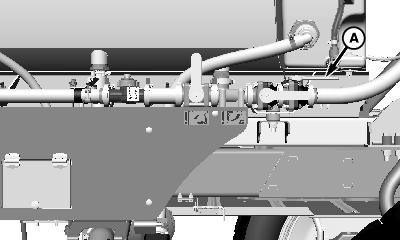

   A - Strainer Shut-Off Valve

   Verify strainer shut-off valve (A) is open.

---




3. Unfold boom.

4.
   N98800-UN-17SEP12

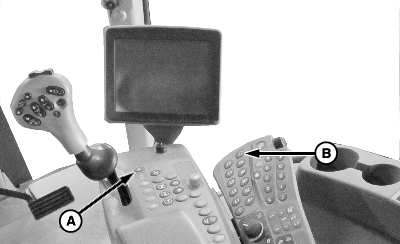

   A - Solution Pump Switch

   B - All Spray Sections On Switch

   Push solution pump switch (A) to engage solution pump.

---




5. Press all spray section on switch (B) to engage all spray sections.
