Operate Front Fill Air Purge

1. CAUTION: Read carefully the directions printed on the chemical manufacturer's labels before handling chemicals, exposure to hazardous materials could cause injury and be poisonous.

   IMPORTANT: Do not add chemical to tank until just before field use. Follow the chemical manufacturer's instructions for mixing the spray solution to obtain the desired application rate and effect.

   CAUTION: Quik-Fill valve (A) can contain hazardous materials which can poison causing serious injury or death. Before purging, make sure Quik-Fill valve is closed.

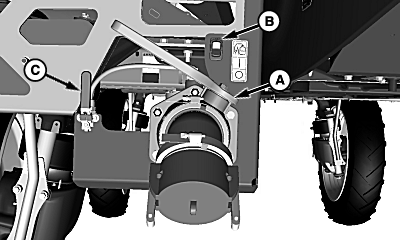

   N98880-UN-16MAY13

   A - Quik-Fill Valve

   B - Switch

   C - Air Purge Valve

   Verify Quik-Fill valve (A) is closed.

---




2. Move switch (B) to OFF position to close front fill isolation valve.

3. Open front fill air purge valve (C) and wait ten seconds.

4. Close front fill air purge valve.
