Drain Solution Tank

N99947-UN-11JUL13

N94531-UN-23SEP11

A - Quik-Fill Valve

B - Cap

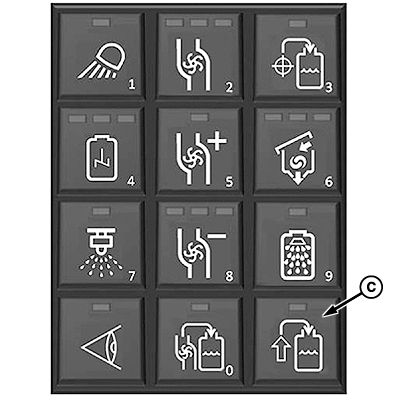

C - Push-On Fill Button

CAUTION: Spray system can contain hazardous material which can cause serious injury or death to you or others. Wear protective clothing, eyewear, and gloves. Drain solution tank in an area where people, animals, vegetation, and water supply etc., cannot be contaminated.

1. CAUTION: Quik-Fill valve (A) can contain hazardous materials which can poison causing serious injury or death to you or others. Before removing Quik-Fill cap (B), make sure Quik-Fill valve is turned off.

   Do not drain solution onto the ground. Drain into a container.

   Verify Quik-Fill valve (A) is closed.

2. Open lock levers and remove cap (B).

3. Connect nurse tank hose to Quik-Fill or place suitable container under Quik-Fill to catch solution.

4. Press push-on fill button (C) to open tank sump valve and open Quik-Fill valve.

5. After solution has drained press push-on button and close Quik-Fill valve and replace cap.
