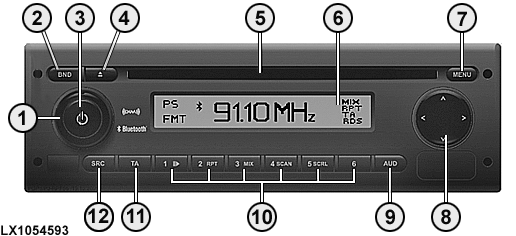

Controls and Instruments - Standard Radio with CD and Premium Radios

LX1054593-UN-25AUG11

Location	Designation	Function
1	Volume Control
2	BND	Press briefly to select memory level or wave band
		Press and hold to start the Travelstore function
3	On/Off key	Press briefly to switch the radio on
		Press briefly during operation to mute the radio
		Press and hold to switch the radio off
4	CD Eject key
5	CD Slot
6	Display	Change the display
7	Menu	Calling up the menus for the basic settings
8	Multi-function rocker switch	Navigate within the display and switch functions
9	AUD key	Press briefly to open audio menu to set bass, mid-range, and treble tone controls, balance, fade* and loudness
		Press and hold to restore factory sound settings (treble and bass for the currently used audio source only)
10	1 - 6 key block	Station keys
11	TA key	Switch back from user and audio menus to current source. Exit the radio scan functions. Switch the priority for traffic announcements on/off. Cancel a traffic announcement while in process (Europe only).
12	SRC Key	Source selection between radio and AUX (depending on model also CD, USB, and XM) provided that a medium is inserted or connected and turned on.
*Fade is only possible if front as well as rear loudspeakers are connected.
