Replace Fill Station Light and Work Light Halogen Bulbs

  1. NOTE: (For important safety information regarding halogen bulbs, see Safety Rules When Replacing Halogen Bulbs in this section before performing this procedure).

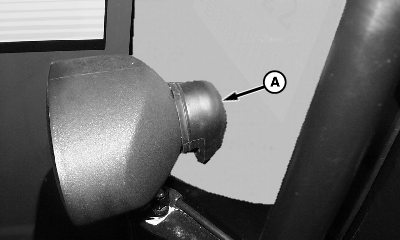

    N60070
    N60070-UN-01AUG02

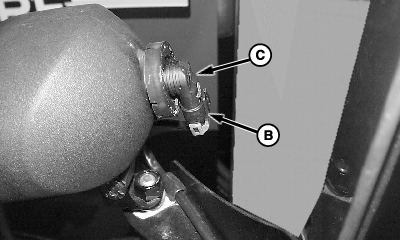

    N60697
    N60697-UN-01AUG02

    A - Boot

    B - Harness Connector

    C - Bulb Assembly

    Remove rubber boot (A) if equipped.


  2. Disconnect harness connector (B) from bulb assembly (C).

  3. Rotate bulb assembly counterclockwise approximately 1/4 turn and remove.

  4. Install replacement bulb in reverse order of removal.

OUO1073,0001BB1-19-20031031
