Fill Load Command Pump

  1. IMPORTANT: Load Command pump must have fluid prior to operating. Lack of fluid in pump could cause pump to malfunction.

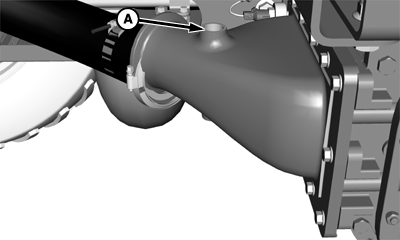

    N83590
    N83590-UN-13MAR09

    A - Port

    Unplug port (A).


  2. Fill port with minimum of 3.7 L (1 gal) of water.

  3. Plug port.

OUO6041,0000264-19-20090409
