Service Nurse Arm Coupler

Service nurse arm coupler as needed and to remove debris.

1. CAUTION: Solution could remain in nurse arm coupler. Wear protective equipment to ensure excess solution does not come into contact with you or others.

   IMPORTANT: Rinse nurse arm plumbing prior to servicing.

   IMPORTANT: Valve between nurse tank and arm must be closed prior to servicing.

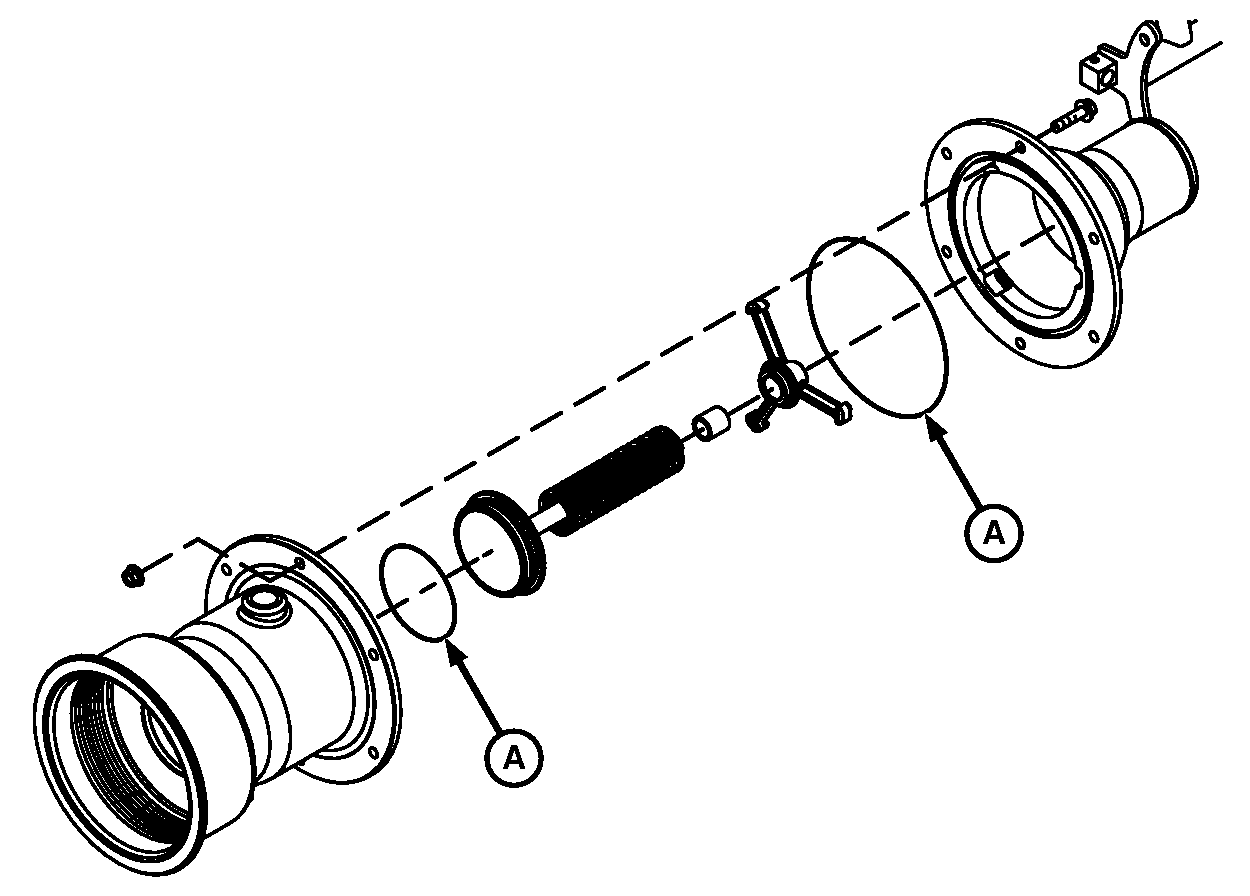

   N83167-UN-09FEB09

   A - O-ring (2 Used)

   Drain nurse arm plumbing before servicing nurse arm coupler.

---




2. Disassemble nurse arm coupler.

3. Replace O-rings (A) as needed.

4. Reassemble nurse arm coupler.
