Spreader Main Page Information Drop Down Lists

N82565-UN-08DEC08

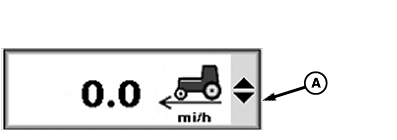

Currently Displayed Information Item

N82566-UN-08DEC08

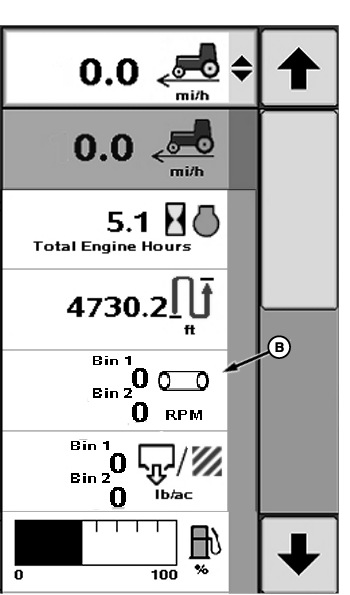

Drop-down Menu

N82567-UN-08DEC08

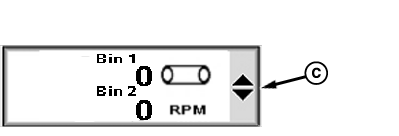

Replacement Information Item

A - Currently Displayed Information Item

B - Desired Information Item

C - Replacement Information Item

The spreader main page allows an operator to view any four of the available information items at one time. The items displayed can be changed as follows.

1. Select currently displayed information item (A) to be replaced. Drop-down menu appears.

2. Select desired information item (B) to display from drop-down menu. Menu closes and replacement information item (C) is displayed on main page.
