Prepare Nurse Arm for Transport

1. CAUTION: Do not rely on load command nurse arm to hold solution in nurse tank. Close tank valve (A) on nurse vehicle before filling tank, before transporting, and when not in use.

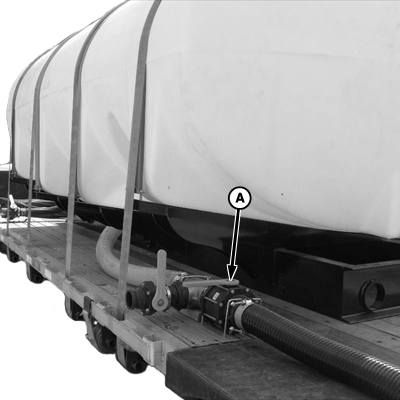

   N83462-UN-24FEB09

   A - Tank Valve

   Close tank valve (A) on nurse vehicle.

---




2.

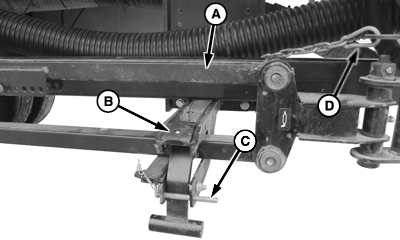

   N88463-UN-04JUN10

   A - Nurse Arm

   B - Latch

   C - Pin

   D - Chain

   Install nurse arm (A) into latch (B).

---




3. Install lock pin (C).

4. Install secondary locking chain (D).
