Replace Rear (Amber) Light Bulbs

1.

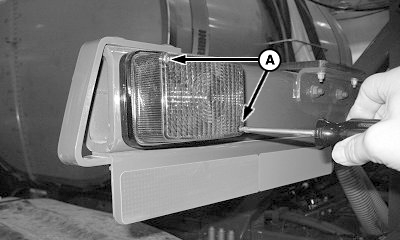

   N90315-UN-19JAN11

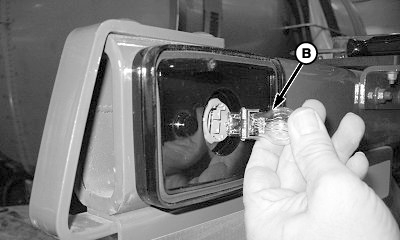

   N90316-UN-19JAN11

   A - Screws (2 used)

   B - Bulb

   Remove two screws (A) and lens.

---




2. Pull bulb (B) straight out to remove.

3. Install replacement bulb and lens.
